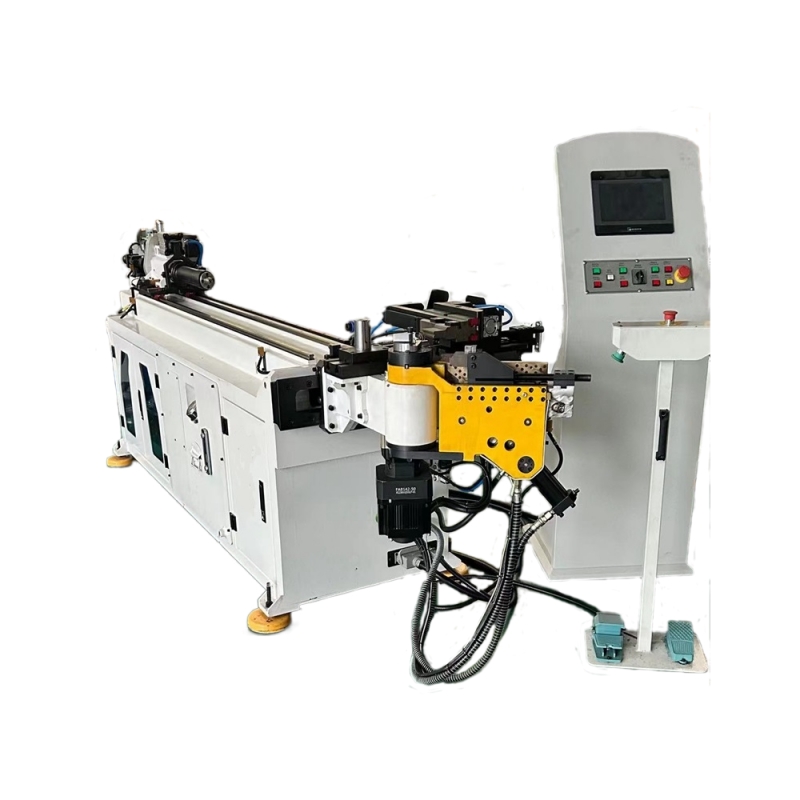

SPS ® CNC 3 Axes Pipe Bending Machine
• Mitsubishi ultra-large PLC can accommodate 2000 groups of files.
• With Y (feed), B (turn tube), C(bending) 3-axes electrical servo drive.
• Manual, semi-automatic and full-automatic operation can be selected.
• With mandrel device, optional with or without mandrel
-
| Model | Unit |
38CNC3A1S |
50CNC3A1S |
63CNC3A1S |
75CNC3A1S |
89CNC3A1S |
115CNC3A1S |
| Max Bend Capability | Mm | 38*2 | 50*3 | 64*3 | 75*5 | 89*6 | 115*8 |
| Max Bend Radius | Mm | R200 | R330 | R280 | R550 | R550 | R450 |
| Min Bend Radius | Mm | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D |
| Max Bend Angle | ° | 190 | 190 | 190 | 190 | 190 | 190 |
| Max Feeding Length | Mm | 2200 |
2500 |
3200 |
3500 |
4000 |
4500 |
| Bending Pipe Speed | °/s | Max 150 | Max 100 | Max 100 | Max 50 | Max 30 | Max 30 |
| Turning Pipe Speed | °/s | Max 200 | Max 200 | Max 200 | Max 200 | Max 160 | Max 170 |
| Feeding Pipe Speed | Mm/s | Max 1000 | Max 1000 | Max 1000 | Max 1000 | Max 800 | Max 700 |
| Bending Pipe Accuracy | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Turing Pipe Accuracy | ° | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Feeding Pipe Accuracy | Mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Data Input Mode | X.Y.Z/ Y.B.C | X.Y.Z/ Y.B.C | X.Y.Z/ Y.B.C | X.Y.Z/ Y.B.C | X.Y.Z/ Y.B.C | X.Y.Z/ Y.B.C | |
| Bending Pipe Mode | Servo | Servo |
Servo |
Servo |
Servo |
Servo |
|
| Turning Pipe Servo Motor | Kw | 0.75 | 0.75 | 0.75 | 1 | 1.5 | 2 |
| Feeding Pipe Servo Motor | Kw | 1 | 1.5 | 1.5 | 1.5 | 2 | 3 |
| Bending Pipe Servo Motor | Kw | 3 | 5 | 7 | 11 | 15 | 22 |
| Number of Store | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Number of Bending Pipe | 32 | 32 | 32 | 32 | 32 | 32 |
|
| Hydraulic Motor Power | Kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 22 |
| Max Pressure | Mpa | 12 | 12 | 12 | 12 | 14 | 14 |
| Dimension | Cm | 386*720*123 | 420*72*123 | 420*80*123 | 500*120*140 | 520*120*140 | 700*150*170 |
