CYBELEC CybTouch 8PS Controller System Introduction

CybTouch 8 PS

CybTouch 8 PS is specifically developed for synchronized press-brakes.

As part of the CybTouch range, it has an intuitive and vivid color touch screen and a high integration of functions.

Thanks to its interactive touch software interface with large keys, on-line help, and many other automatic functions that constantly guide the operator, CybTouch 8 is as simple as a positioner control.

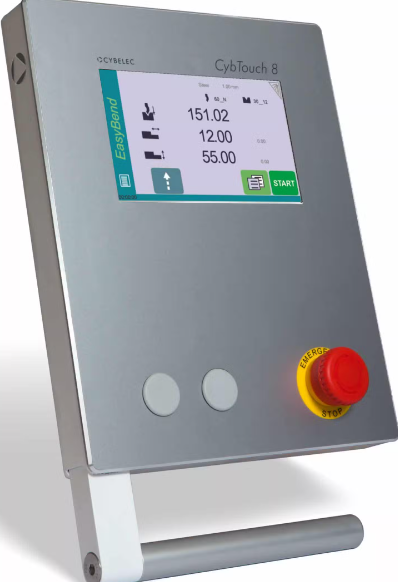

CybTouch 8 comes with a robust, modern and streamlined housing specially designed to be mounted on an arm.

We offer two models:

-CybTouch 83 PSe, 3 axes (Y1, Y2, X), economical version, not up-gradable to 4 axes.

-CybTouch 84 PS, 4 axes (Y1, Y2, X, R)

Available in housing or panel design

CybTouchTools

All CybTouch come with CybTouchTools, which allows to wireless transferring data between a PC and CybTouch (requires optional RFLink USB key). It is used to backup/restore machine parameters, tools and parts, as well as updating the software.

PC Offline Software

We supply the same universal PC offline software for all CybTouch and VisiTouch controls.

OFT – VST – 2                PC offline software VisiTouch (2D)

OFT – VST – MX            PC offline software VisiTouch MX (3D)

OFT – VST – MXIMP     PC offline software VisiTouch MX including import of DXF/DWG, IGES, STEP, SAT and X_T

All three above PC offline software allow transferring tools and programs to all CybTouch PS and VisiTouch controls.

PC offline software VisiTouch now offers the possibility to program parts for several press brakes (multi-machines functionality).

The Advantages about CYBELEC CybTouch 8PS:

1. Easy Operating

● Intuitive user-friendly interface.

● Simple pages, clear display, large keys.

● Large, vivid and high-contrast fully touchscreen.

● Complete programming for efficient mass-production with multiple bends.

● Easy single bends with EasyBend page.

● On-line help and interactive warning pop-ups.

● Comfortable wireless data backup and software updating using PC or Notebook.

● Large variety of languages available.

2. Better Bending

● Various automatic calculations of bend functions.

● Bending sequences and programs can be memorized.

● Angle, pressure and crowning management.

● Easy manual movement.

● Offline 2D software available.

3. Powerful

● Controls 3 axes (with optional 4th axis).

● 2D graphic profile creation with manual sequencing (option).

● Bend allowance calculation.

● Pressure – crowning calculation.

● Modular tools for each part or bend.

● Angle and back gauge correction.

● Telemaintenance via wireless connection with PC or notebook.

● USB port for memory stick for data transfer/backup.

4. Customer benefits

● Open to any operator thanks to the simple and intuitive full touch screen programming

● Quality and productivity increases by means of a smooth and fast beam management

● Wireless connectivity for easy communication
