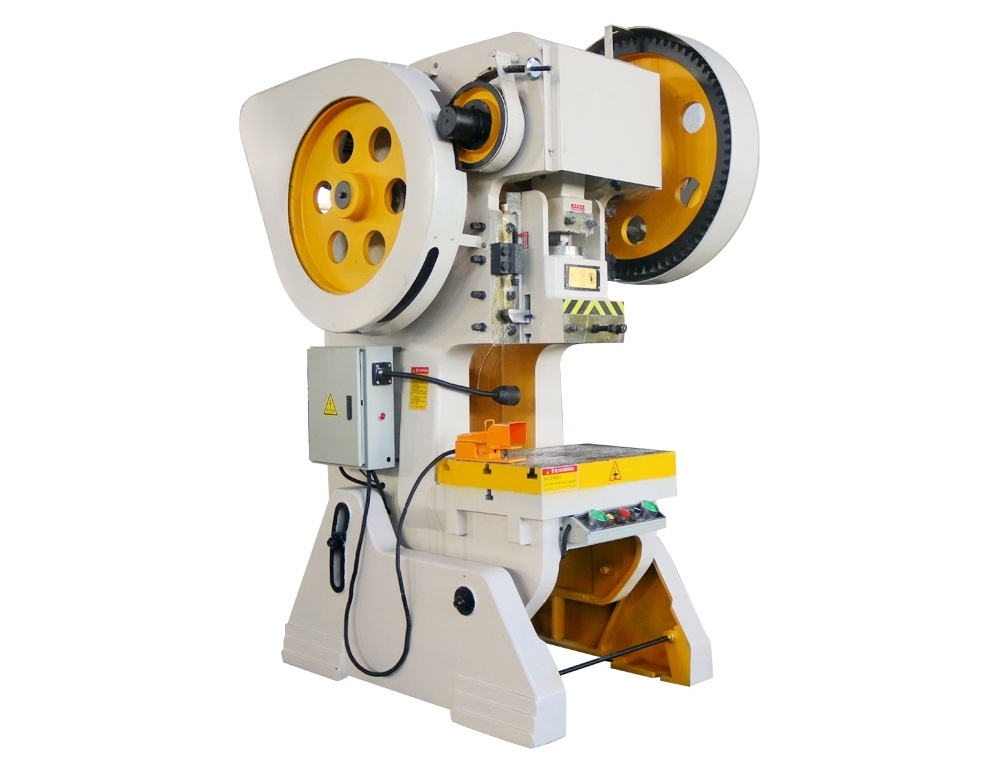

SPS ® J23 Punching Machine



• The crankshaft is horizontally mounted, with an open spur gear, making maintenance convenient.

• The loading height of the slider is manually adjusted to display the loading height.

• Suitable for a variety of cold stamping processes, such as cutting, punching, blanking, bending, etc.

-

Model

Unit

16T

25T

40T

63T

80T

100T

125T

Norminal Pressure Kn 160 250 400 630 800 1000 1250
Slide Stroke Mm 60 70 110 100 120 130
140
Slide Strokes Times/min 110 60 55 60 50 45 45
Max Close Height Mm 190 210 325 350 370 380 400
Die Height Adjust Mm

40

50

65

80

90

100

 100

Distance between slider center and machine Mm 180 190 230 240 260 310 340
Workbench diameter Mm 300*450 320*525 400*650 440*700 480*750 540*840 720*1100
Polo Distance Mm 220 240 300 300 300 380 500
Shank Hole Diameter Mm 35 40 50 60 60 60 60
Shank Hole Depth Mm 60 60 70 70 80 80 75
Pad Thickness Mm  50 50  75  80  95  100  130
Body Angle ° 25 25 25 25 25   20  23
Motor Power Kw  1.5 2.2   3 7.5  7.5   11
Weight Kg 750 1500  2500   4000 5000  6000  7000
