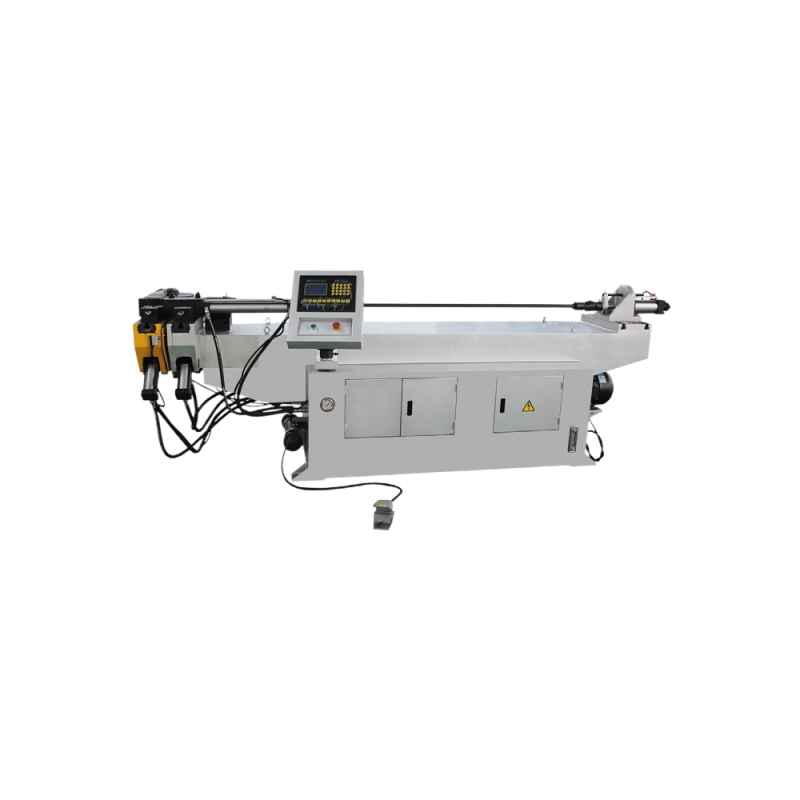

SPS ® NC Pipe Bending Machine
• Adopt NC programmable controller, can be set for multiple bending angle.
• Adopt high performance imported hydraulic valves and electrical components.
• English version display, man-machine dialogue operation, manual, half-cycle, full-cycle operation mode can be selected at will.
• With mandrel device, optional with or without mandrel
-
| Model | Unit |
38NC |
50NC |
63NC |
75NC |
89NC |
115NC |
130NC |
| Max Bend Capability | Mm | 38*2 | 50*3 | 64*3 | 76.1*4 | 89*6 | 115*8 | 130*8 |
| Max Bend Radius | Mm | R260 | R350 | R350 | R400 | R450 | R520 | R520 |
| Min Bend Radius | Mm | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D | ≥1.5D |
| Max Bend Angle | ° | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Max Feeding Length | Mm | 1600 |
2200 |
2600 |
2800 |
3500 |
4500 |
4500 |
| Control System | / | Microcomputer | ||||||
| Bending Pipe Mode | Hydraulic | Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
| Hydraulic System Cobtrol | Solenoids | |||||||
| Number of Store | 16*16 | 16*16 | 16*16 | 16*16 | 16*16 | 16*16 | 16*16 | |
| Number of Bending Pipe | 16 | 16 | 16 | 16 | 16 | 16 |
16 |
|
| Hydraulic Motor Power | Kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 22 | 22 |
| Max Pressure | Mpa | 12 | 12 | 12 | 12 | 14 | 14 | 14 |
| Dimension | Cm | 260*60*100 | 300*70*100 | 320*75*110 | 400*100*110 | 430*130*120 | 570*130*160 | 570*160*130 |
