- New design stronger and stable machine frame
- The entire machine is quenched to eliminate internal stress
- Whole machine floor boring processing
- Deeper and thickened throat depth
- Fast and easy tooling changing system
- Imported components from worldwide reliable and famous brand
- Standard DA53T Controller 4+1 axes
- Auto mechanical crowning table

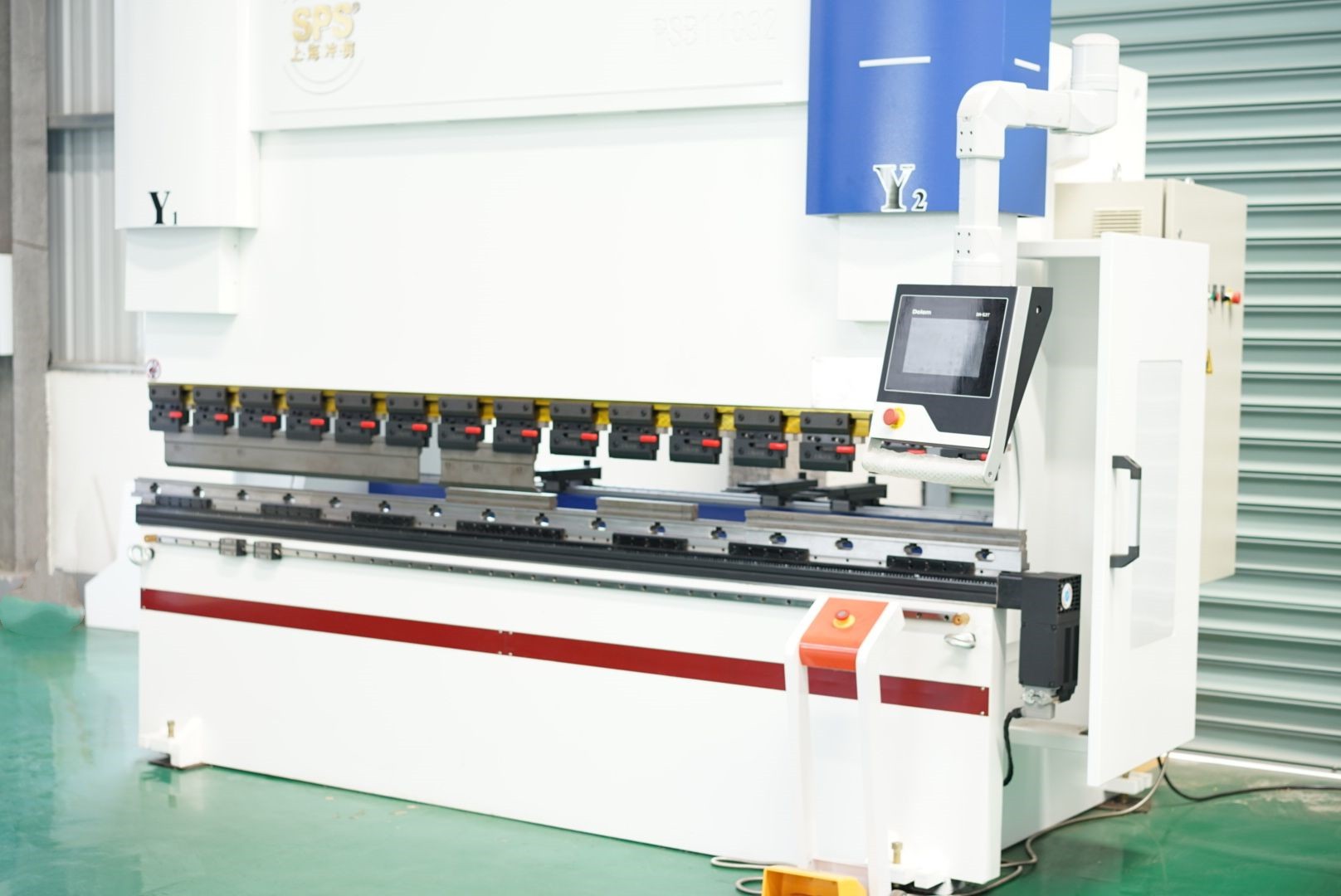

SPS ® PSA Series CNC Press Brake adopts the internationally advanced electro-hydraulic proportional synchronous control system, with two gratings ruler installed on the C-shaped frame. The grating ruler, CNC system and proportional valve form a closed-loop servo control system to accurately control the speed and position of the slider.
PSA Series CNC Press Brake is mainly driven by a hydraulic cylinder to drive the slider to move the mold up and down. The machine has an integral structure and the frame is welded, which is easy to manufacture and install, and the whole machine has good rigidity and high strength.
Standard Components
| l 10.1" Delem DA53T Control Unit | l Taiwan HIWIN Ball Screw and Linear Guide Rail |
| l Y1, Y2, X, R and V Crowning | l Germany EMB Pipe Connector |

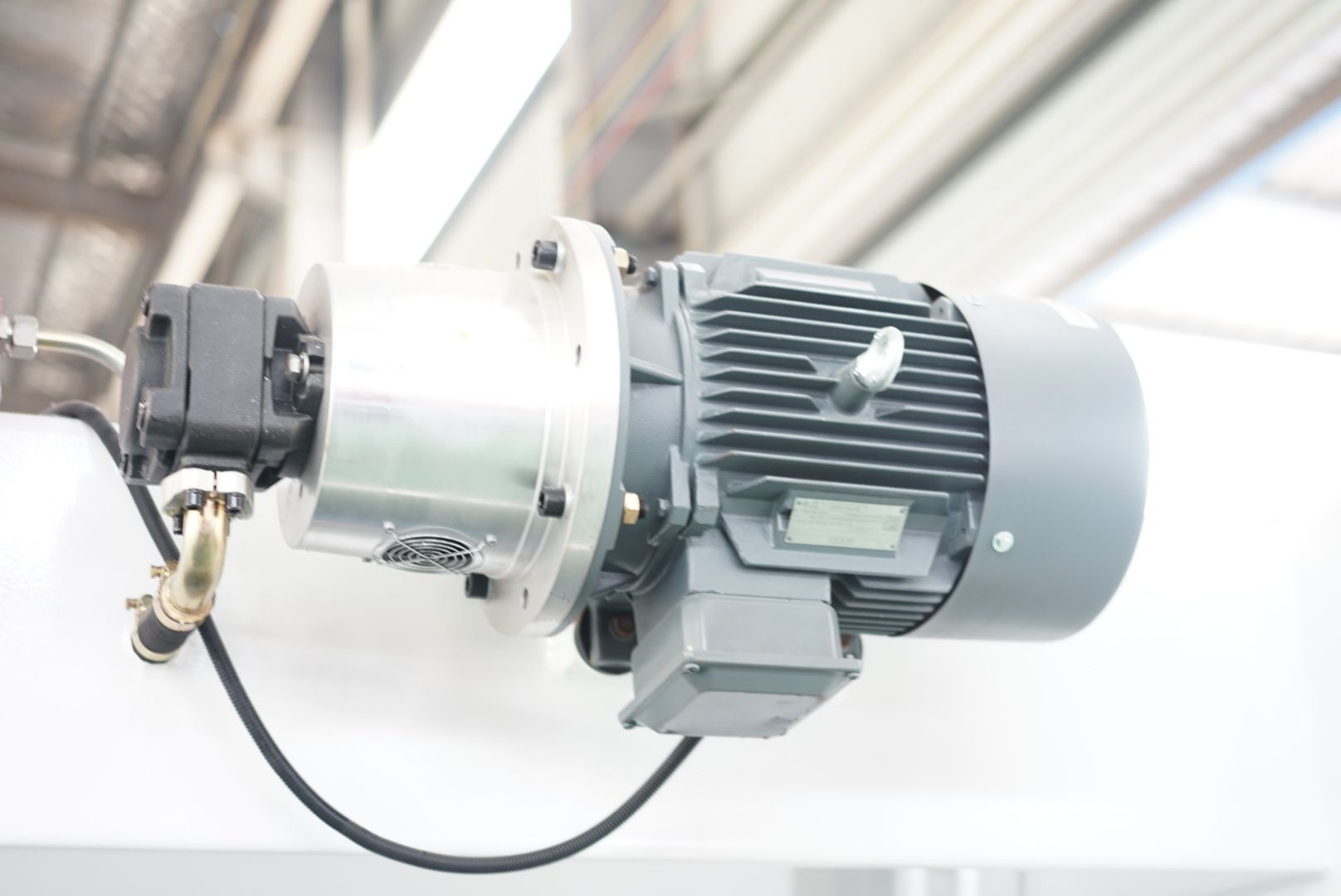

| l Germany Siemens Main Motor | l Movable Stop Fingers on Double Linear Guide Rail |

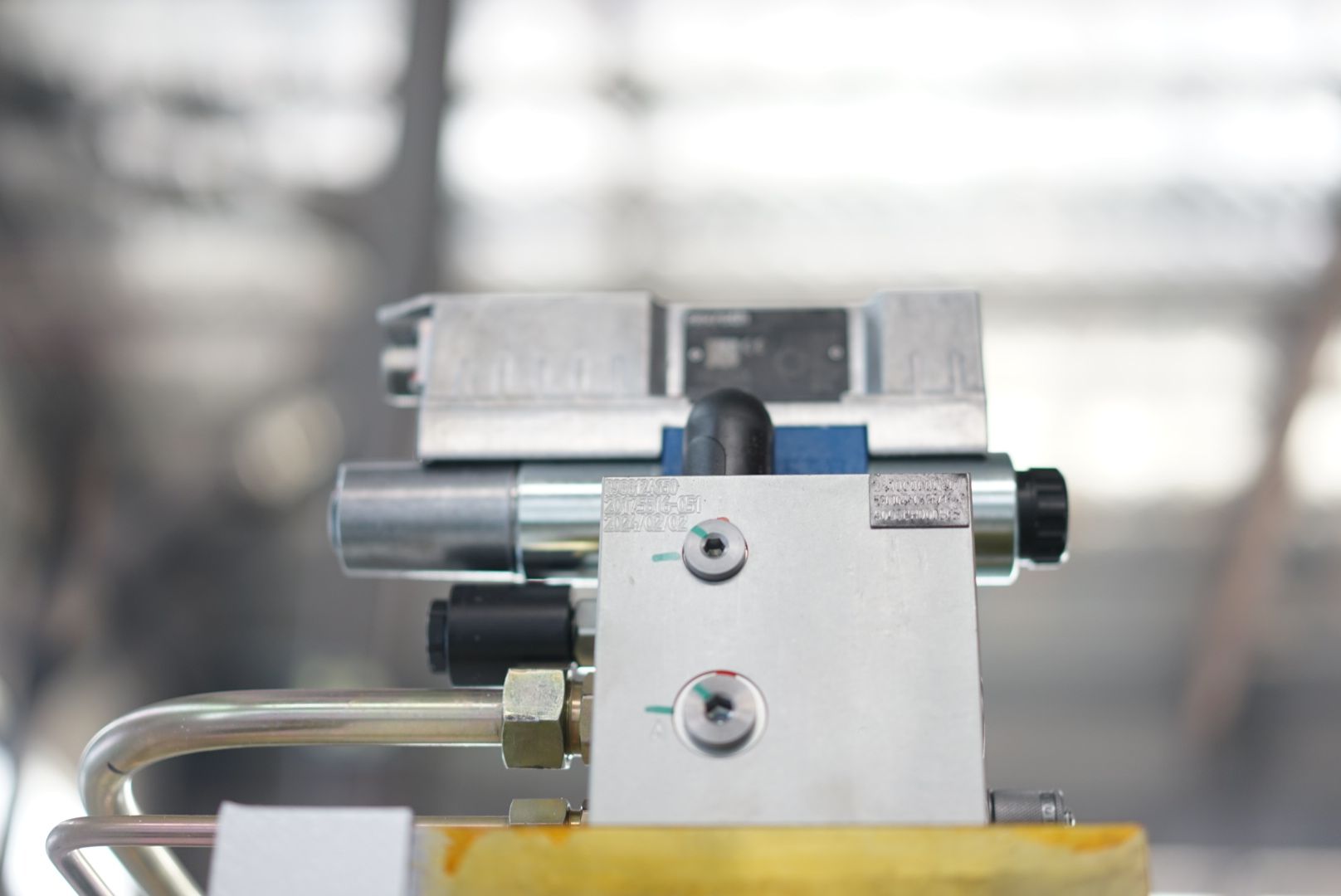

| l Germany Bosch-Rexroth Proportional Valve | l Japan NOK Sealings |
| l France Schneider Electrics | l Korea Foot Pedal with Emergency Stop Button |
| l USA First/Sunny Oil Pump | l Fast and Easy Tooling Change System |
| l Spain Fagor Grating Ruler | l SPS Group High Precision Punch and Die |

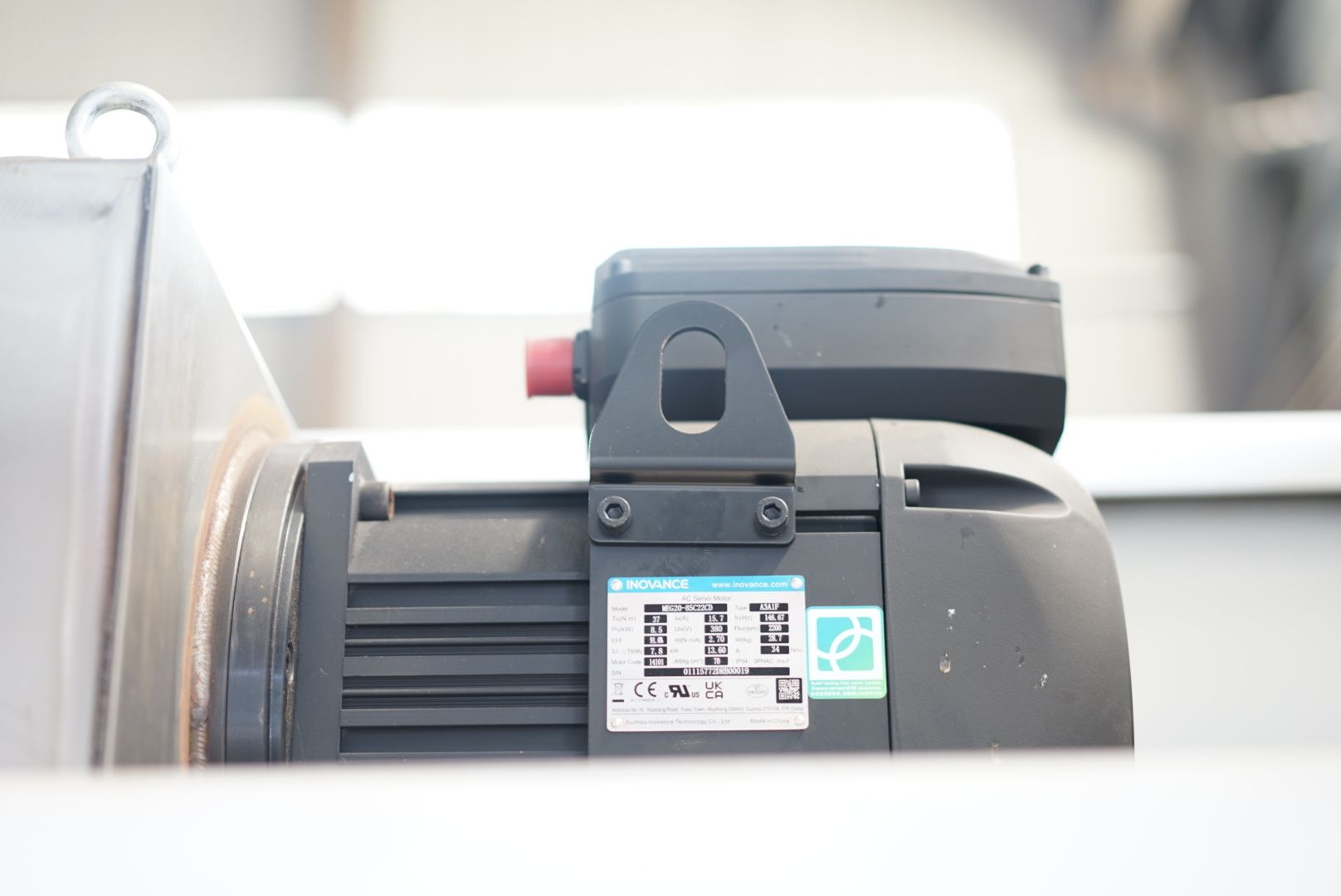

| l Estun Servo Motor and Driver | l Side and Back Safety Fence |

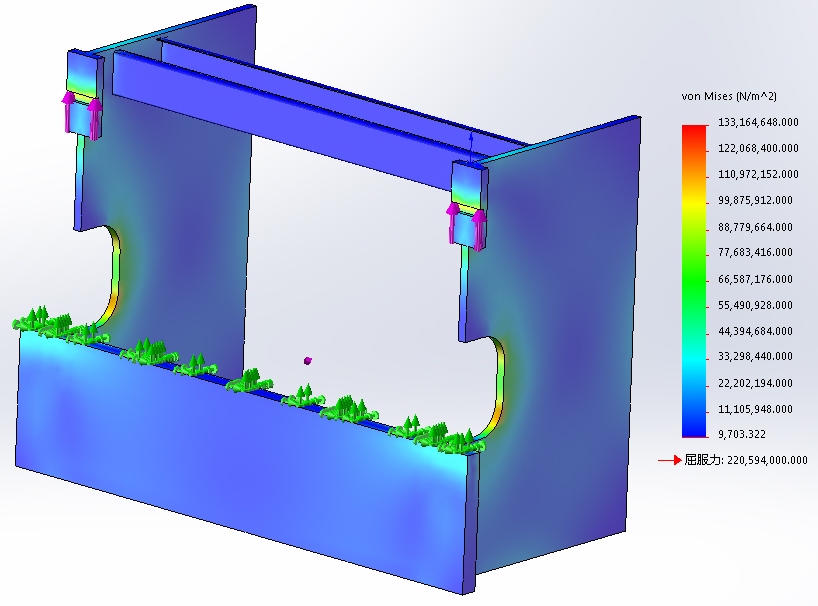

The CAE software SOLIDWORKS used to ensure reasonable frame deformation and high strength. The slider is annealed as a whole and processed as a whole with high precision, which can ensure stable precision for a long time.

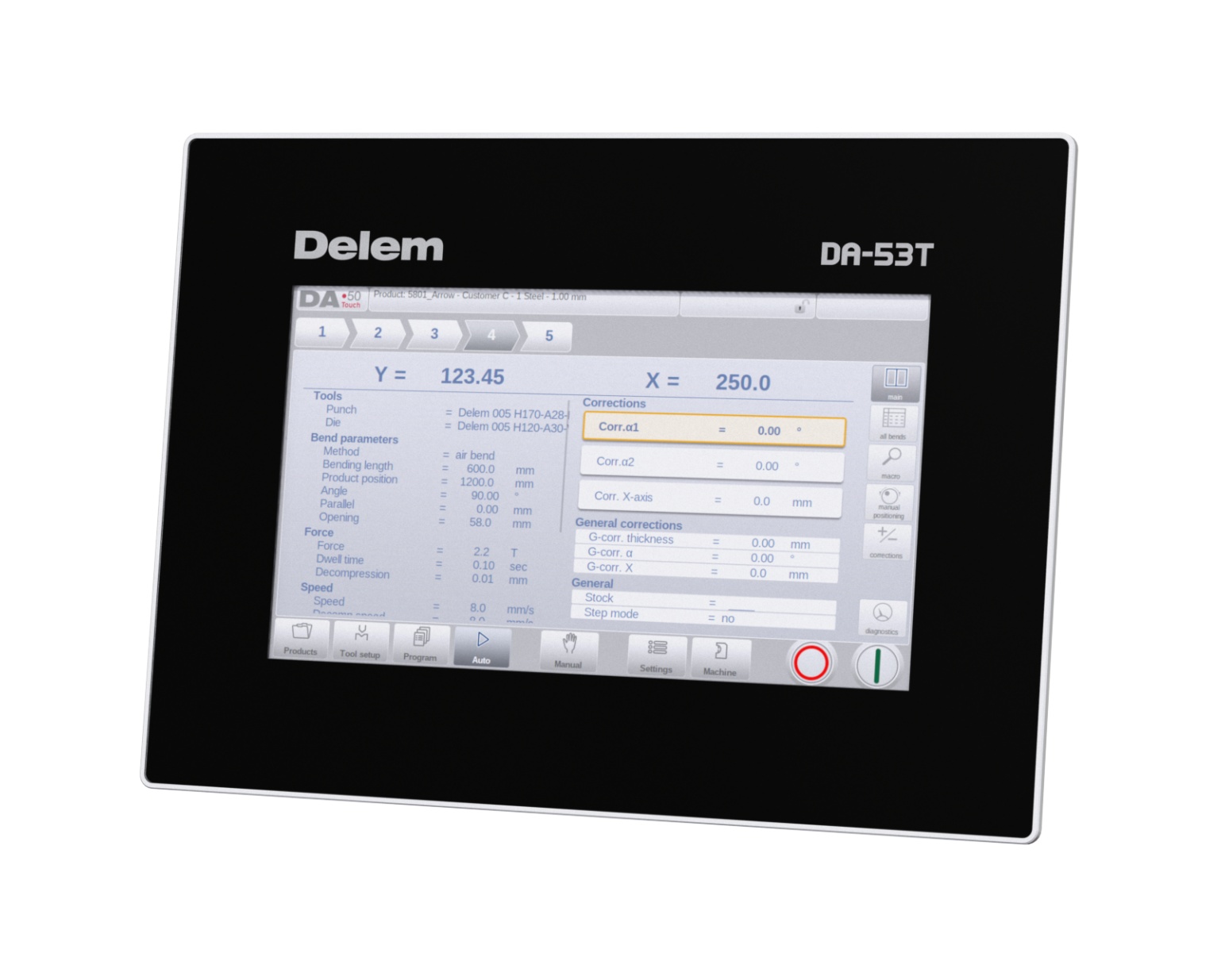

Delem DA53T Control Unit
"Hot-key” touch navigation
10.1" high resolution colour TFT
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Crowning control
Tool / material / product library
Servo and frequency inverter control
TandemLink (option)
USB memory stick interfacing
Profile-T offline software
The workbench is equipped with a deflection compensation mechanism to compensate for the deformation of the workbench and slider to ensure the accuracy of the workpiece. The adjustment method is mainly for the user to input a value to the CNC system based on the actual angle error of the workpiece being processed, and the CNC system will automatically adjust the compensation.

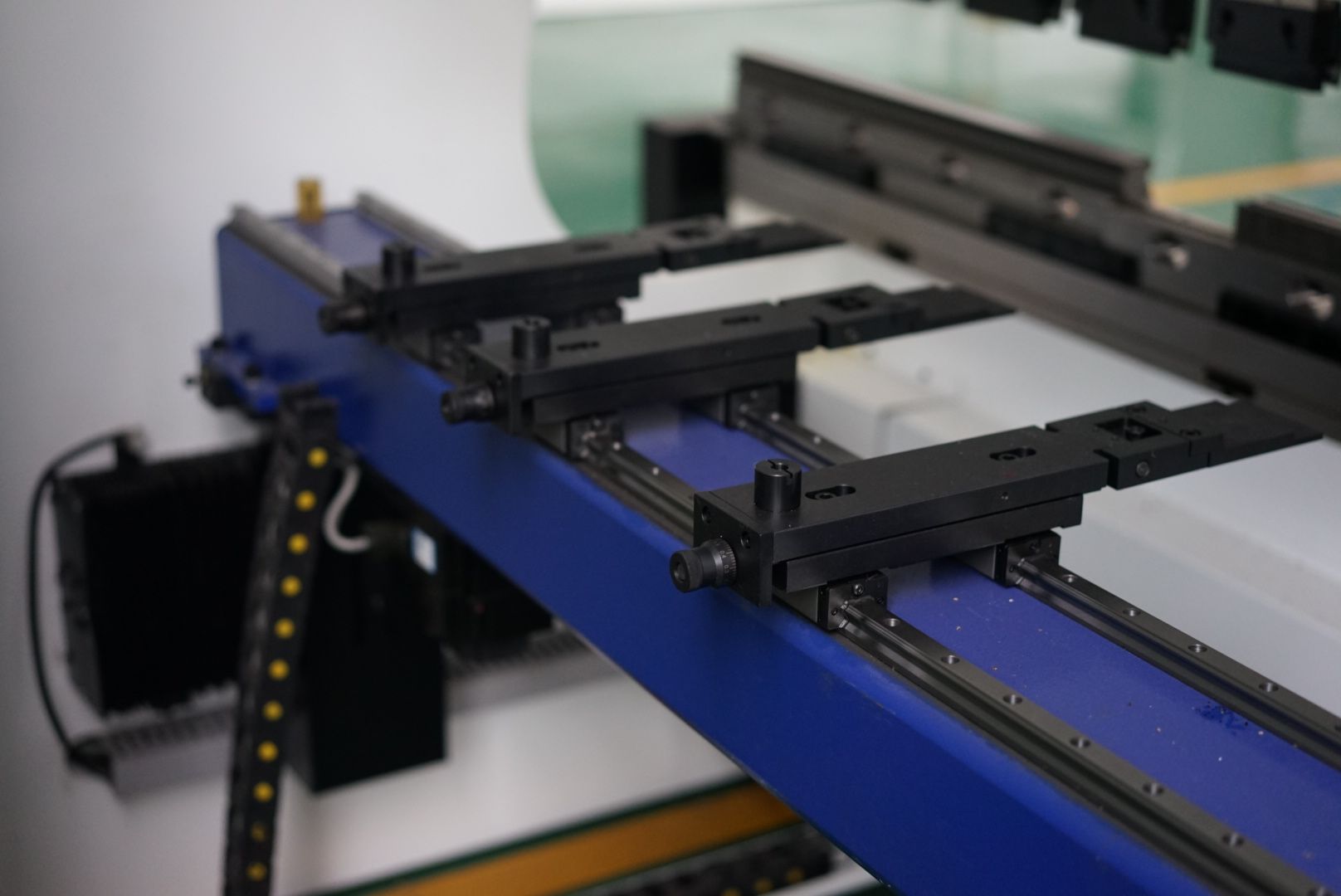

PSA CNC Press Brake Backgauge is assembled by ball screw, linear guide rail, and adjustable stopper finger.
It is equipped with CNC X-axis and R-axis as standard. The X-axis travel is 0-600mm. There are 3 pcs of stoppers on the stopper beam, two of which can be manually moved left and right to stop the material according to different material width, and it has a manual fine-tuning structure. The back stopper beam is annealed and suitable for gantry processing center processing, with good stability and high precision.
Optional Components
|
l DA53TX 2D Programming l Estun Servo Main Motor l Italy DSP Laser Protection l Auto Bending Follower Support l Bending Angle Measurement |
l CE Economic Light Curtain l High Precision Multi-V Die l WILA Hydraulic Clamping System l WILA Tooling and Worktable System l DA53TX, DA58T, DA66T, DA66S, DA69T, CT8, CT12, CT15 |
Technical Parameters
| Model |
Bending Pressure | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Max Open Height | Backgauge Travel | Main Motor | Dimension |
| Kn | Mm | Mm | Mm | Mm | Mm | Mm | Kw | Mm | |
| PSA-63T2500 | 630 | 2500 | 2000 | 350 | 150 | 320 | 600 | 5.5 | 2700*1340*2000 |
| PSA-80T2500 | 800 | 2500 | 2000 | 350 | 150 | 460 | 600 | 5.5 | 2800*1450*2450 |
| PSA-110T3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 600 | 7.5 | 3800*1800*2650 |
| PSA-110T4000 | 1100 | 4000 | 3500 | 400 | 200 | 480 | 600 | 11 | 4600*1800*2650 |
| PSA-130T3200 | 1300 | 3200 | 2700 | 400 | 200 | 480 | 600 | 11 | 3800*1800*2700 |
| PSA-130T4000 | 1300 | 4000 | 3500 | 400 | 200 | 480 | 600 | 11 | 4600*1800*2700 |
| PSA-170T3200 | 1700 | 3200 | 2700 | 450 | 200 | 480 | 600 | 15 | 3800*2050*2800 |
| PSA-170T4000 | 1700 | 4000 | 3500 | 450 | 200 | 480 | 600 | 15 | 4600*2050*2800 |
| PSA-220T3200 | 2200 | 3200 | 2700 | 450 | 200 | 480 | 600 | 18.5 | 3800*2100*2900 |
| PSA-220T4000 | 2200 | 4000 | 3500 | 450 | 200 | 480 | 600 | 18.5 | 4600*2100*2900 |
| PSA-220T5000 | 2200 | 5000 | 3900 | 450 | 200 | 540 | 600 | 18.5 | 5600*2100*2900 |
| PSA-250T3200 | 2500 | 3200 | 2700 | 450 | 250 | 540 | 600 | 18.5 | 3500*2200*2900 |
| PSA-250T4000 | 2500 | 4000 | 3500 | 450 | 250 | 540 | 600 | 22 | 4300*2200*2900 |
| PSA-250T5000 | 2500 | 6000 | 4900 | 450 | 250 | 540 | 600 | 22 | 5400*2200*3100 |
| PSA-320T3200 | 3200 | 3200 | 2700 | 500 | 250 | 570 | 600 | 22 | 3500*2200*3200 |
| PSA-320T4000 | 3200 | 4000 | 3500 | 500 | 250 | 570 | 600 | 22 | 4300*2500*3400 |
| PSA-320T5000 | 3200 | 5000 | 3900 | 500 | 250 | 570 | 600 | 22 | 5400*2500*3400 |
| PSA-400T3200 | 4000 | 3200 | 2700 | 500 | 300 | 570 | 600 | 30 | 3500*2700*3500 |
| PSA-400T4000 | 4000 | 4000 | 3500 | 500 | 300 | 610 | 600 | 30 | 4300*2700*3500 |
| PSA-400T5000 | 4000 | 5000 | 3900 | 500 | 300 | 610 | 600 | 30 | 5400*2700*3500 |
| PSA-500T4000 | 5000 | 4000 | 3500 | 500 | 320 | 610 | 600 | 37 | 4300*2700*3500 |
| PSA-500T5000 | 5000 | 5000 | 3900 | 500 | 320 | 610 | 600 | 37 | 5400*2700*3500 |
| PSA-500T6000 | 5000 | 6000 | 4900 | 500 | 320 | 610 | 600 | 37 | 6400*2700*3600 |
| PSA-600T5000 | 6000 | 5000 | 3900 | 500 | 320 | 610 | 600 | 45 | 5400*3300*3900 |
| PSA-600T6000 | 6000 | 6000 | 4900 | 500 | 320 | 610 | 600 | 45 | 6400*3300*3900 |
