- Servo main motor control, energy saving 40% compared to PSA series
- Low noise, environmental friendly
- The entire machine is quenched to eliminate internal stress
- Whole machine floor boring processing
- Deeper and thickened throat depth

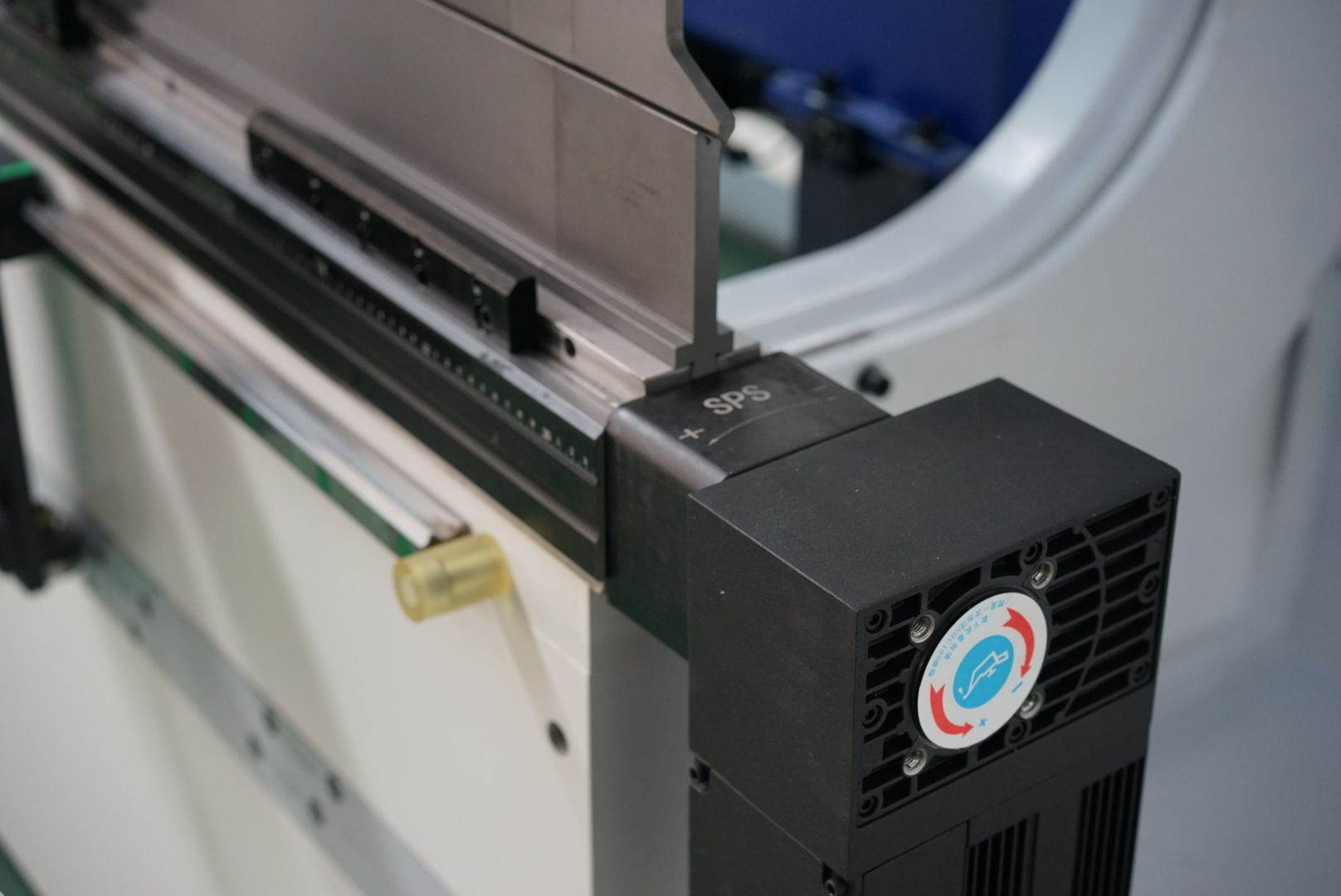

- Fast and easy tooling changing system
- Imported components from worldwide reliable and famous brand
- Standard DA53T Controller 4+1 axes
- Auto mechanical crowning table

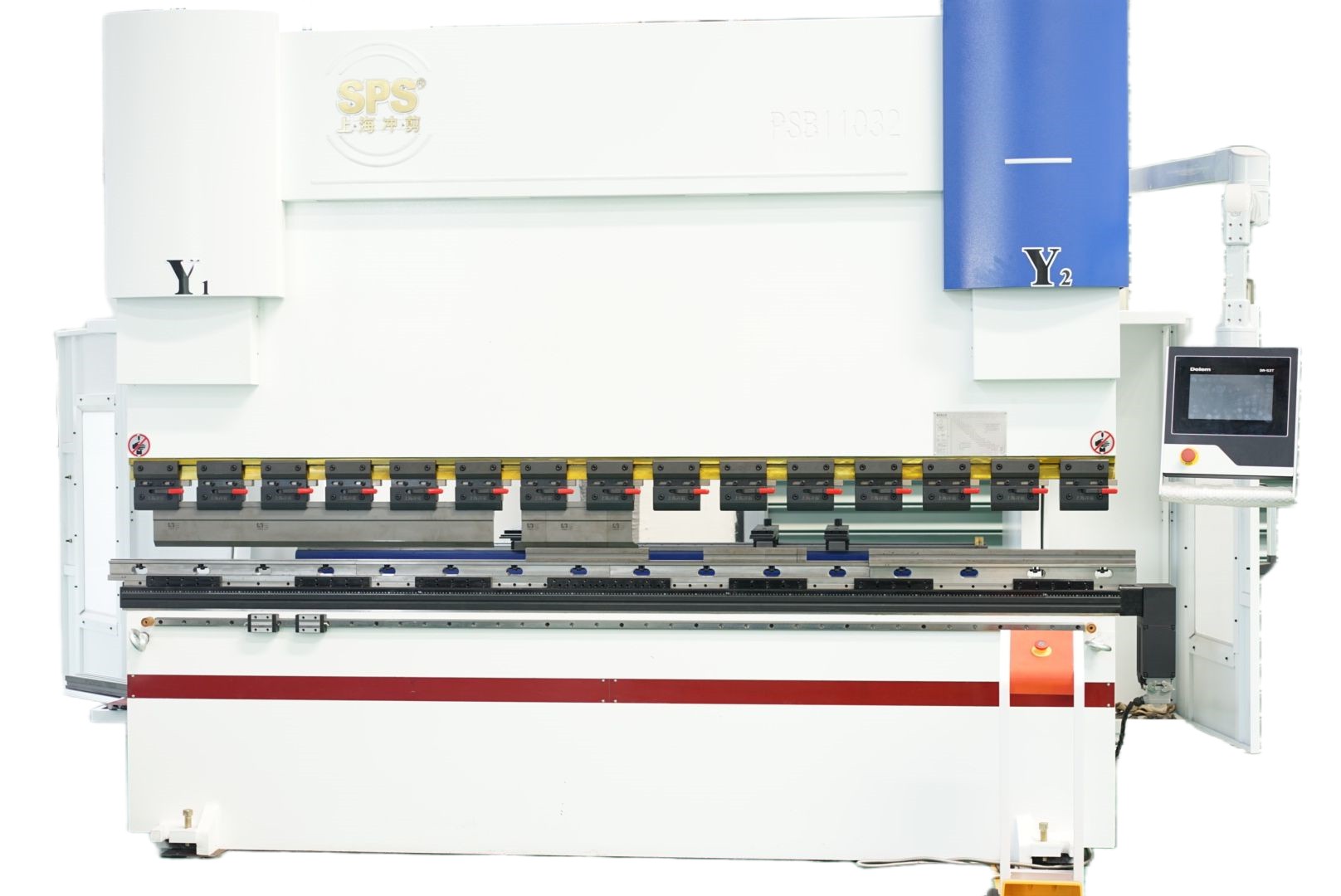

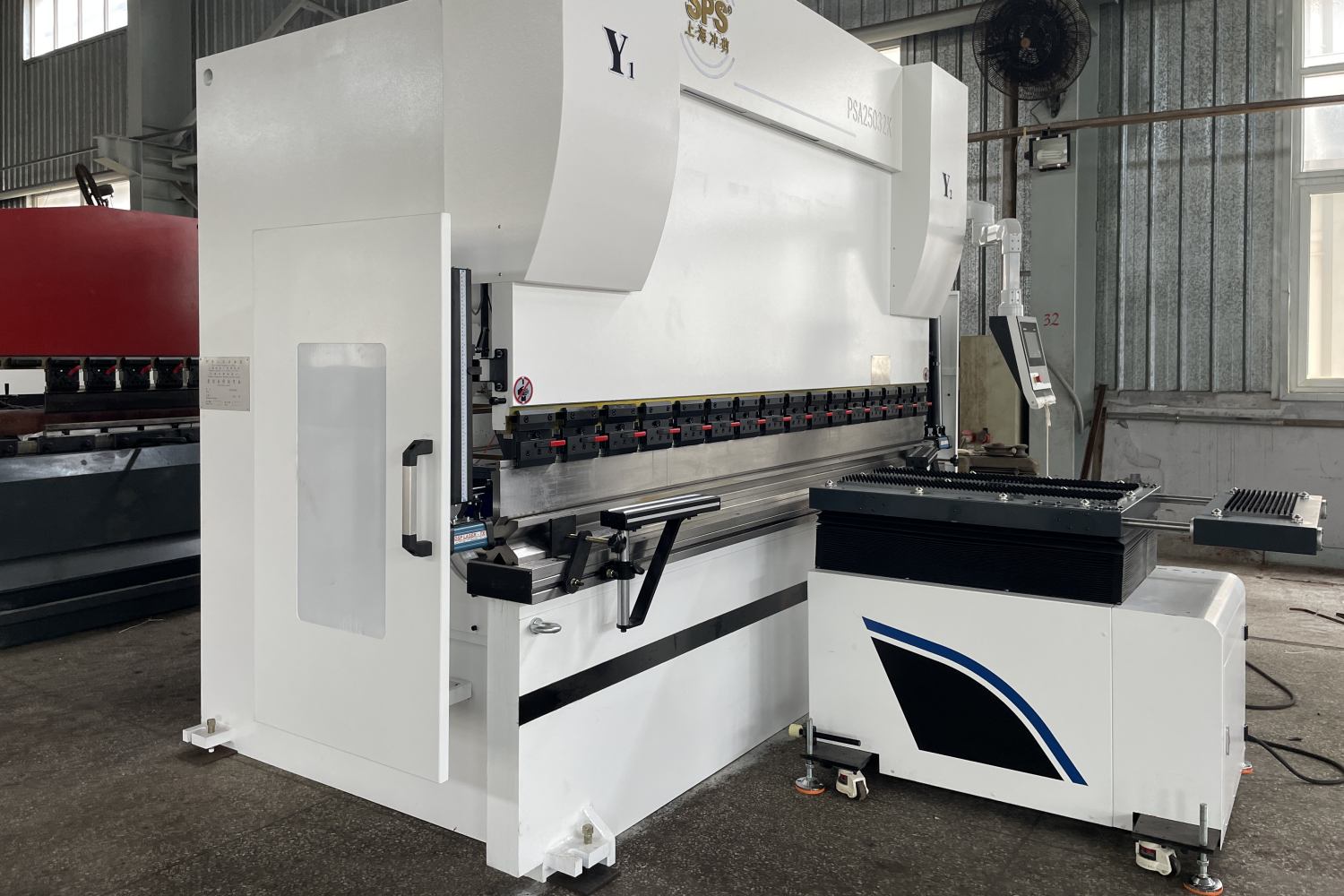

SPS® PSB Servo CNC Press Brake adopts the Bosch-Rexroth proportional synchronous control system, with two gratings ruler installed on the C-shaped frame. The grating ruler, CNC system and proportional valve form a closed-loop servo control system to accurately control the speed and position of the slider.

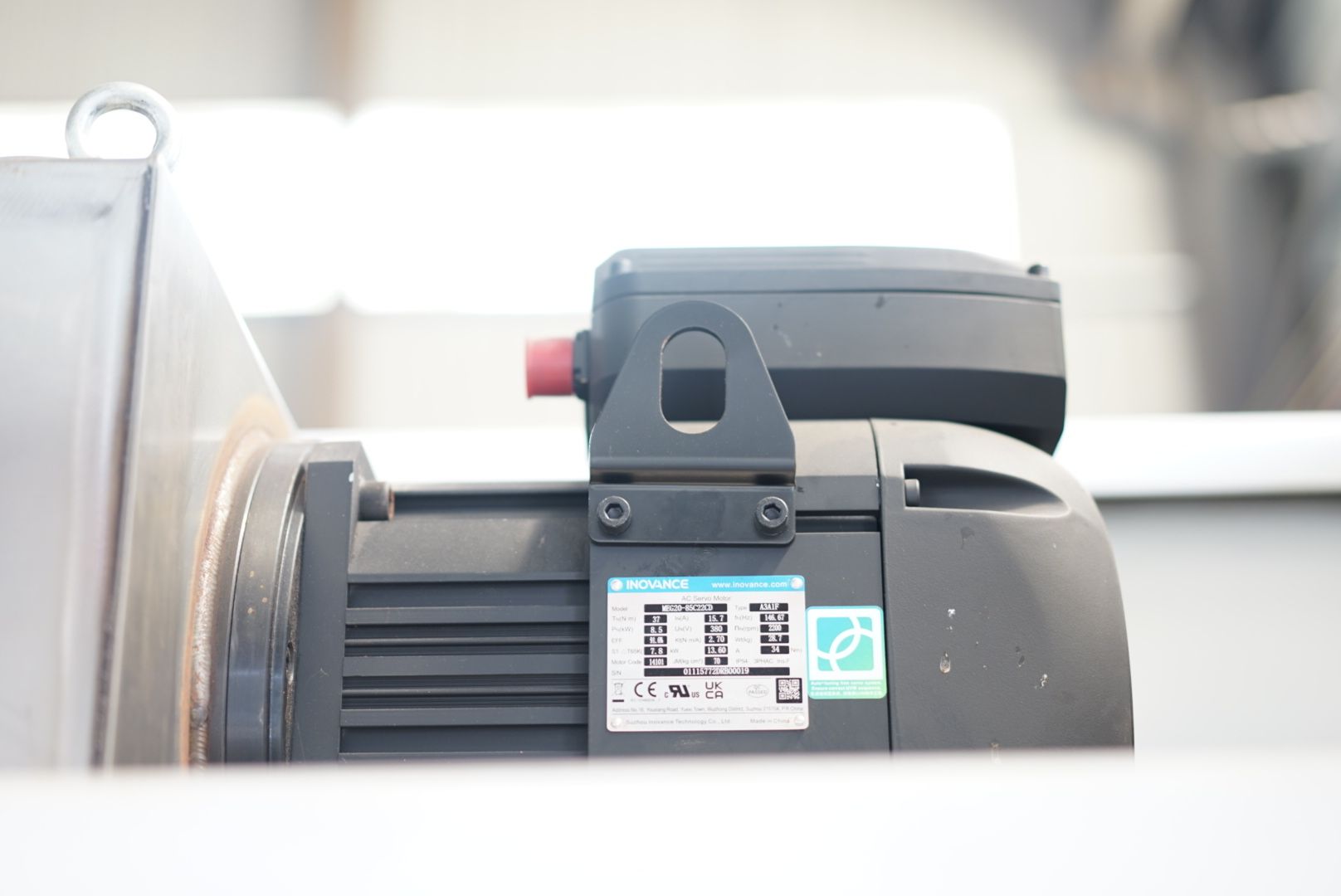

PSB® CNC Press Brake adopts Innovance/Estun Servo main motor instead of Siemens main motor. The oil supply in demand, reduce overflow and energy saving 30~40%, prolong the life of hydraulic parts, reduce oil leakage and hydraulic problem, easy to use and maintanance. At the same time, servo main motor running with low noise, improving the working environment.
| l 10.1" Delem DA53T Control Unit | l Taiwan HIWIN Ball Screw and Linear Guide Rail |
| l Y1, Y2, X, R and V Crowning | l Germany EMB Pipe Connector |
| l Estun/Innovance Servo Main Motor | l Movable Stop Fingers on Double Linear Guide Rail |
| l Germany Bosch-Rexroth Proportional Valve | l Japan NOK Sealings |
| l France Schneider Electrics | l Korea Foot Pedal with Emergency Stop Button |
| l USA First/Sunny Oil Pump | l Fast and Easy Tooling Change System |
| l Spain Fagor Grating Ruler | l SPS Group High Precision Punch and Die |
| l Estun Servo Motor and Driver | l Side and Back Safety Fence |

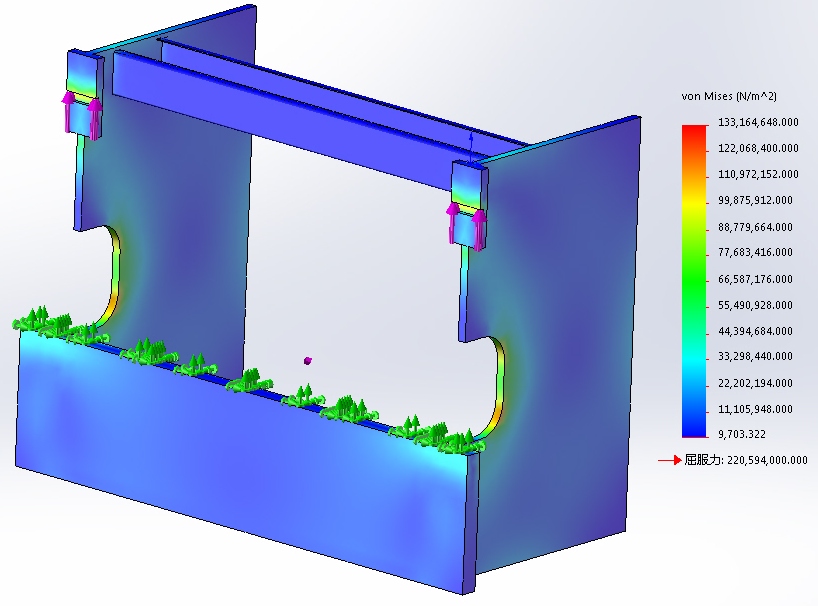

The CAE software SOLIDWORKS used to ensure reasonable frame deformation and high strength. The slider is annealed as a whole and processed as a whole with high precision, which can ensure stable precision for a long time.
Delem DA53T Control Unit
"Hot-key” touch navigation
10.1" high resolution colour TFT
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Crowning control
Tool / material / product library
Servo and frequency inverter control
TandemLink (option)
USB memory stick interfacing
Profile-T offline software
The workbench is equipped with a deflection compensation mechanism to compensate for the deformation of the workbench and slider to ensure the accuracy of the workpiece. The adjustment method is mainly for the user to input a value to the CNC system based on the actual angle error of the workpiece being processed, and the CNC system will automatically adjust the compensation.

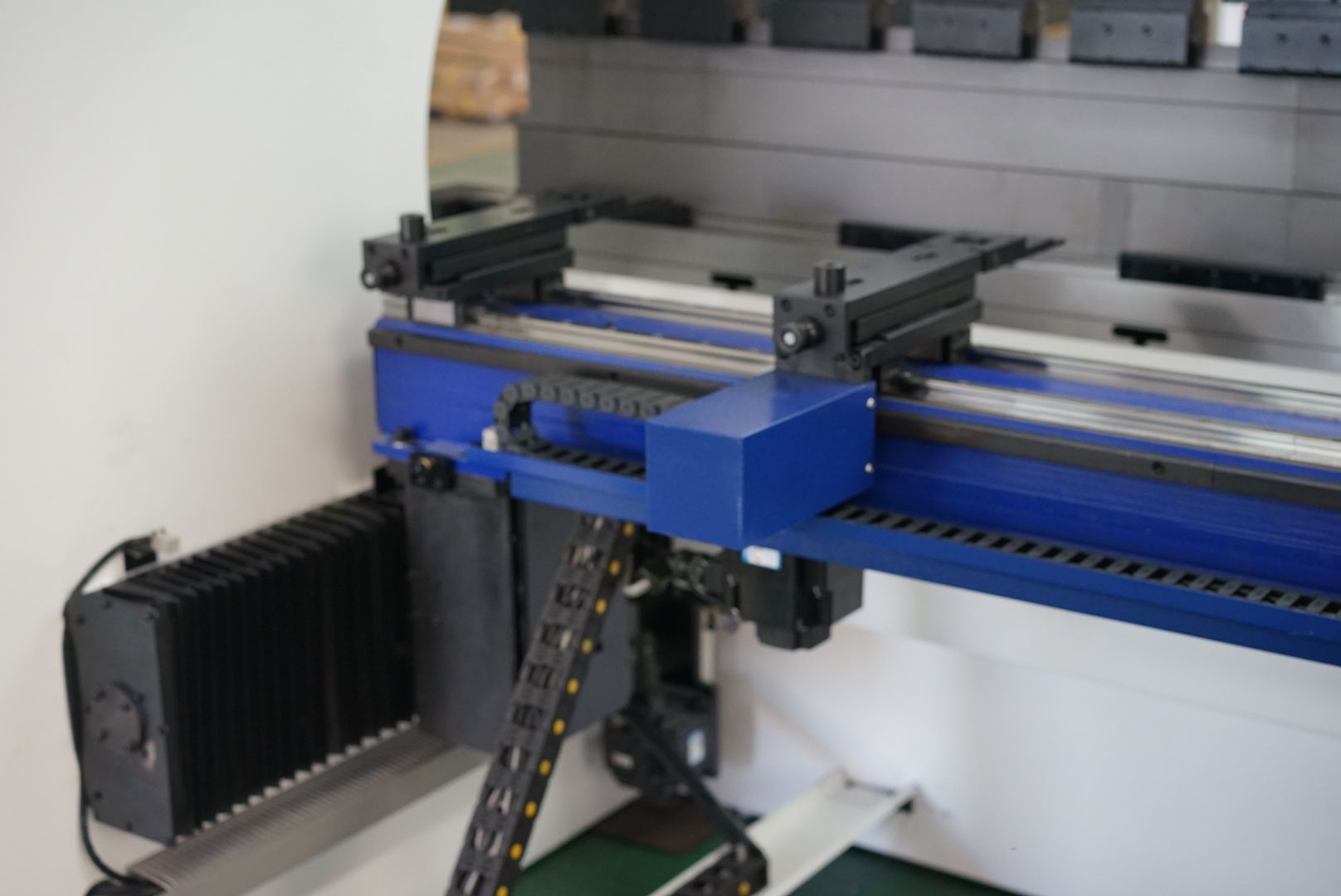

PSA CNC Press Brake Backgauge is assembled by ball screw, linear guide rail, and adjustable stopper finger.
It is equipped with CNC X-axis and R-axis as standard. The X-axis travel is 0-600mm. There are 3 pcs of stoppers on the stopper beam, two of which can be manually moved left and right to stop the material according to different material width, and it has a manual fine-tuning structure. The back stopper beam is annealed and suitable for gantry processing center processing, with good stability and high precision.
Optional Components
|
l DA53TX 2D Programming l Estun Servo Main Motor l Italy DSP Laser Protection l Auto Bending Follower Support l Bending Angle Measurement |
l CE Economic Light Curtain l High Precision Multi-V Die l WILA Hydraulic Clamping System l WILA Tooling and Worktable System l DA53TX, DA58T, DA66T, DA66S, DA69T, CT8, CT12, CT15 |
Technical Parameters
| Model |
Bending Pressure | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Max Open Height | Backgauge Travel | Servo Main Motor | Dimension |
| Kn | Mm | Mm | Mm | Mm | Mm | Mm | Kw | Mm | |
| PSB-63T2500 | 630 | 2500 | 2000 | 350 | 150 | 320 | 600 | 6 | 2700*1340*2000 |
| PSB-80T2500 | 800 | 2500 | 2000 | 350 | 150 | 460 | 600 | 8.7 | 2800*1450*2450 |
| PSB-110T3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 600 | 7.5 | 3800*1800*2650 |
| PSB-110T4000 | 1100 | 4000 | 3500 | 400 | 200 | 480 | 600 | 10.8 | 4600*1800*2650 |
| PSB-130T3200 | 1300 | 3200 | 2700 | 400 | 200 | 480 | 600 | 10.8 | 3800*1800*2700 |
| PSB-130T4000 | 1300 | 4000 | 3500 | 400 | 200 | 480 | 600 | 10.8 | 4600*1800*2700 |
| PSB-170T3200 | 1700 | 3200 | 2700 | 450 | 200 | 480 | 600 | 13.2 | 3800*2050*2800 |
| PSB-170T4000 | 1700 | 4000 | 3500 | 450 | 200 | 480 | 600 | 13.2 | 4600*2050*2800 |
| PSB-220T3200 | 2200 | 3200 | 2700 | 450 | 200 | 480 | 600 | 16.7 | 3800*2100*2900 |
| PSB-220T4000 | 2200 | 4000 | 3500 | 450 | 200 | 480 | 600 | 16.7 | 4600*2100*2900 |
| PSB-220T5000 | 2200 | 5000 | 3900 | 450 | 200 | 540 | 600 | 16.7 | 5600*2100*2900 |
| PSB-250T3200 | 2500 | 3200 | 2700 | 450 | 250 | 540 | 600 | 16.7 | 3500*2200*2900 |
| PSB-250T4000 | 2500 | 4000 | 3500 | 450 | 250 | 540 | 600 | 16.7 | 4300*2200*2900 |
| PSA-250T5000 | 2500 | 6000 | 4900 | 450 | 250 | 540 | 600 | 16.7 | 5400*2200*3100 |
| PSA-320T3200 | 3200 | 3200 | 2700 | 500 | 250 | 570 | 600 | 22 | 3500*2200*3200 |
| PSA-320T4000 | 3200 | 4000 | 3500 | 500 | 250 | 570 | 600 | 22 | 4300*2500*3400 |
| PSA-320T5000 | 3200 | 5000 | 3900 | 500 | 250 | 570 | 600 | 22 | 5400*2500*3400 |
| PSA-400T3200 | 4000 | 3200 | 2700 | 500 | 300 | 570 | 600 | 30 | 3500*2700*3500 |
| PSA-400T4000 | 4000 | 4000 | 3500 | 500 | 300 | 610 | 600 | 30 | 4300*2700*3500 |
| PSA-400T5000 | 4000 | 5000 | 3900 | 500 | 300 | 610 | 600 | 30 | 5400*2700*3500 |
| PSA-500T4000 | 5000 | 4000 | 3500 | 500 | 320 | 610 | 600 | 37 | 4300*2700*3500 |
| PSA-500T5000 | 5000 | 5000 | 3900 | 500 | 320 | 610 | 600 | 37 | 5400*2700*3500 |
| PSA-500T6000 | 5000 | 6000 | 4900 | 500 | 320 | 610 | 600 | 37 | 6400*2700*3600 |
| PSA-600T5000 | 6000 | 5000 | 3900 | 500 | 320 | 610 | 600 | 45 | 5400*3300*3900 |
| PSA-600T6000 | 6000 | 6000 | 4900 | 500 | 320 | 610 | 600 | 45 | 6400*3300*3900 |
