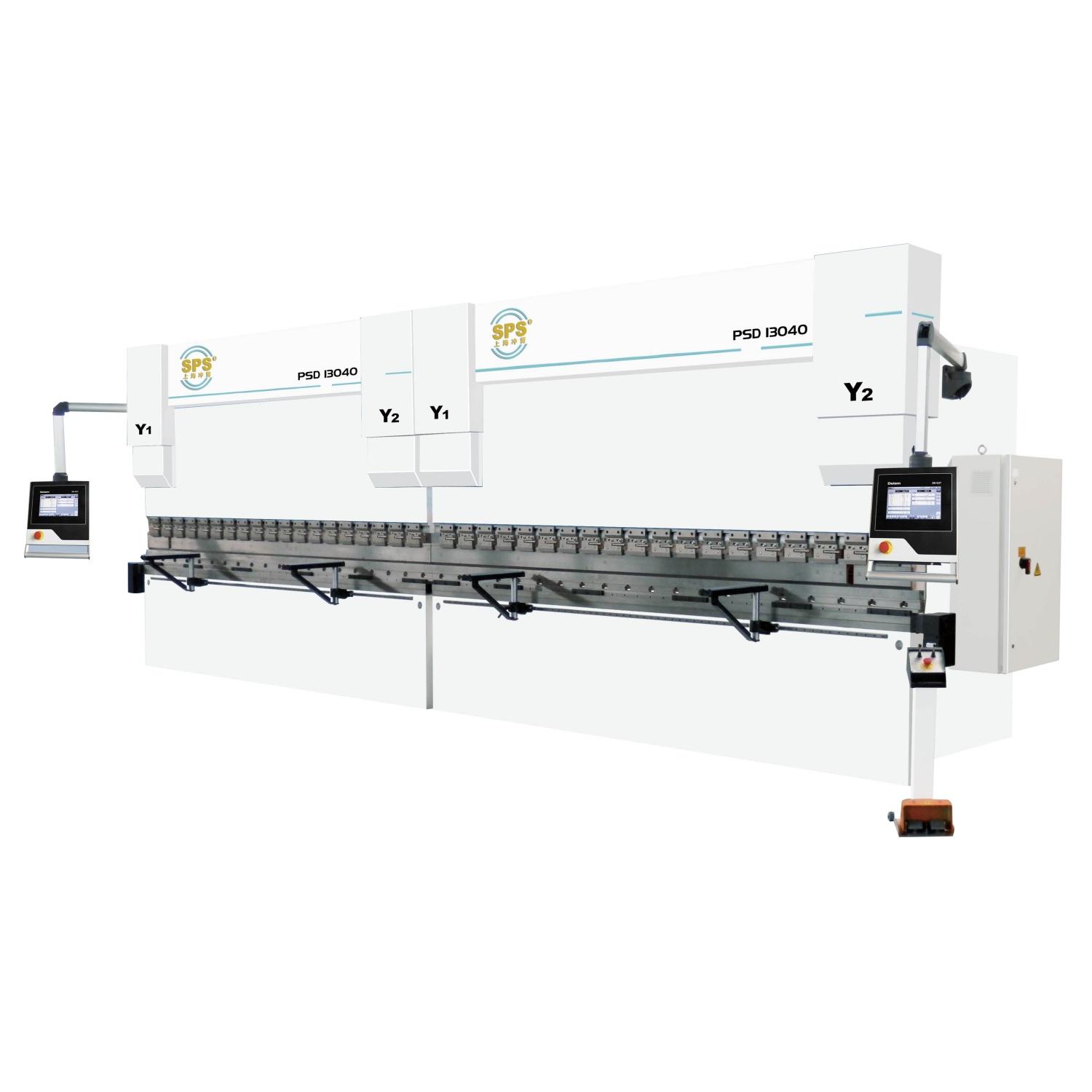

SPS ® PSD Tandem CNC Press Brake
• Two set of SPS Press Brake Machine with the same specifications and configure a double click linkage synchronization device;
• Tandem Press Brake can process extra long workpieces, for example lamp post;
• Press Brake in Tandem can be used separately at the same time to improve production efficiency;
• The machine equipped with a automatic compensation mechanism;
Model |
Bending Pressure Kn |
Bending Length Mm |
Polo Distance Mm |
Throat Depth Mm |
Slide Strokes Mm |
Max Open Height Mm |
Backgauge Travel Mm |
Main Motor Kw |
PSD-110T3200 | 1100x2 | 2x3200 | 2700 | 450 | 200 | 480 | 600 | 2x7.5 |
PSD-110T4000 | 1100x2 | 2x4000 | 3500 | 400 | 200 | 480 | 600 | 2x11 |
PSD-130T3200 | 1300x2 | 2x3200 | 2700 | 400 | 200 | 480 | 600 | 2x11 |
PSD-130T4000 | 1300x2 | 2x4000 | 3500 | 400 | 200 | 480 | 600 | 2x11 |
PSA-170T3200 | 1700x2 | 2x3200 | 2700 | 450 | 200 | 480 | 600 | 2x15 |
PSA-170T4000 | 1700x2 | 2x4000 | 3500 | 450 | 200 | 480 | 600 | 2x15 |
PSA-220T3200 | 2200x2 | 2x3200 | 2700 | 450 | 200 | 480 | 600 | 2x18.5 |
PSA-220T4000 | 2200x2 | 2x4000 | 3500 | 450 | 200 | 480 | 600 | 2x18.5 |
PSA-220T5000 | 2200x2 | 2x5000 | 4000 | 450 | 200 | 540 | 600 | 2x18.5 |
PSA-250T3200 | 2500x2 | 2x3200 | 2700 | 450 | 250 | 540 | 600 | 2x18.5 |
PSA-250T4000 | 2500x2 | 2x4000 | 3500 | 450 | 250 | 540 | 600 | 2x22 |
PSA-250T5000 | 2500x2 | 2x5000 | 3900 | 450 | 250 | 540 | 600 | 2x22 |
PSA-320T3200 | 3200x2 | 2x3200 | 2700 | 500 | 250 | 570 | 600 | 2x22 |
PSA-320T4000 | 3200x2 | 2x4000 | 3500 | 500 | 250 | 570 | 600 | 2x22 |
PSA-320T5000 | 3200x2 | 2x5000 | 3900 | 500 | 250 | 570 | 600 | 2x22 |
PSA-400T3200 | 4000x2 | 2x3200 | 2700 | 500 | 300 | 610 | 800 | 2x30 |
PSA-400T4000 | 4000x2 | 2x4000 | 3500 | 500 | 300 | 610 | 800 | 2x30 |
PSA-400T5000 | 4000x2 | 2x5000 | 3900 | 500 | 300 | 610 | 800 | 2x30 |
PSA-500T4000 | 5000x2 | 2x4000 | 3500 | 500 | 300 | 610 | 800 | 2x37 |
PSA-500T5000 | 5000x2 | 2x5000 | 3900 | 500 | 300 | 610 | 800 | 2x37 |
