PSS Full Electric CNC Press Brake

Configurations

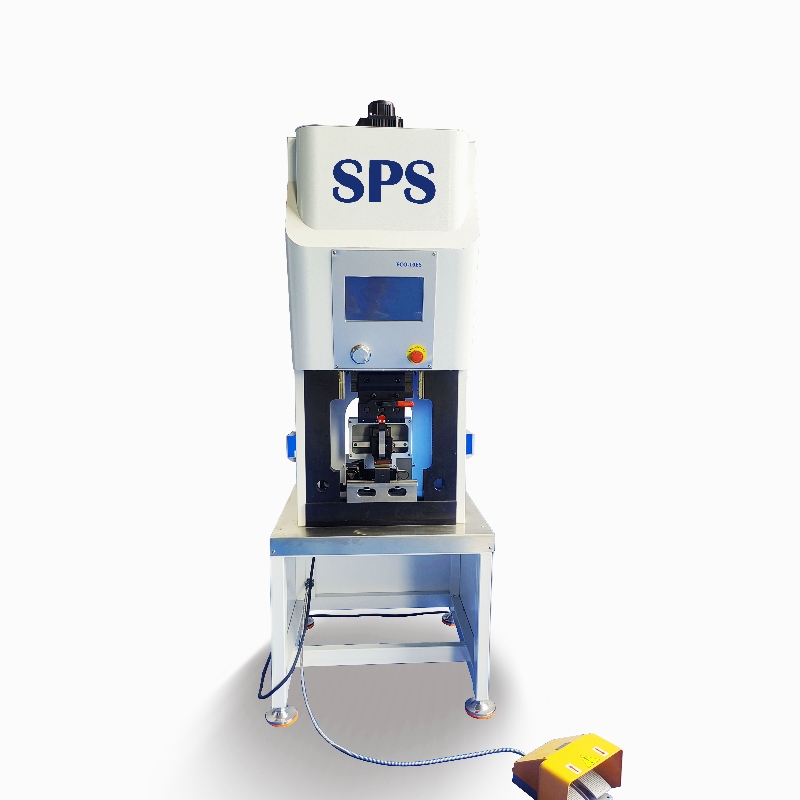

 PSS Full Electric Press Brake

electric cnc press brake

SPS ® PSS Series Electric Mini Press Brake adopts servo motor directly drives the ball screw to drive the slider up and down, using heavy-duty high-precision ball screw, excellent performance, long service life, and the minimum movement setting unit of the Y axis is 0.005mm.

The mold consists of an upper mold and a lower mold. The upper mold is installed on the slider and fixed by a clamp. The lower mold can be single V, double V, multi-IV and other forms. The mold can be segmented or customized according to the user's requirements.

PSS Pure Electric Servo Press Brake will automatically output the appropriate power according to the working conditions. The power consumption is less than 0.5KW when idle, so it is particularly power-saving. There is no need to use and replace hydraulic oil, which stops the pollution of waste hydraulic oil to the environment.





Standard Components



l ECO 10ES Control Unit l Taiwan HIWIN Ball Screw
l Standard Y and X Axis l Taiwan HIWIN Linear Guide Rail
l Servo Main Motor l Fast and Easy Tooling Change System
l France Schneider Electrics l SPS Group High Precision Punch and Die
  • #fast clamp

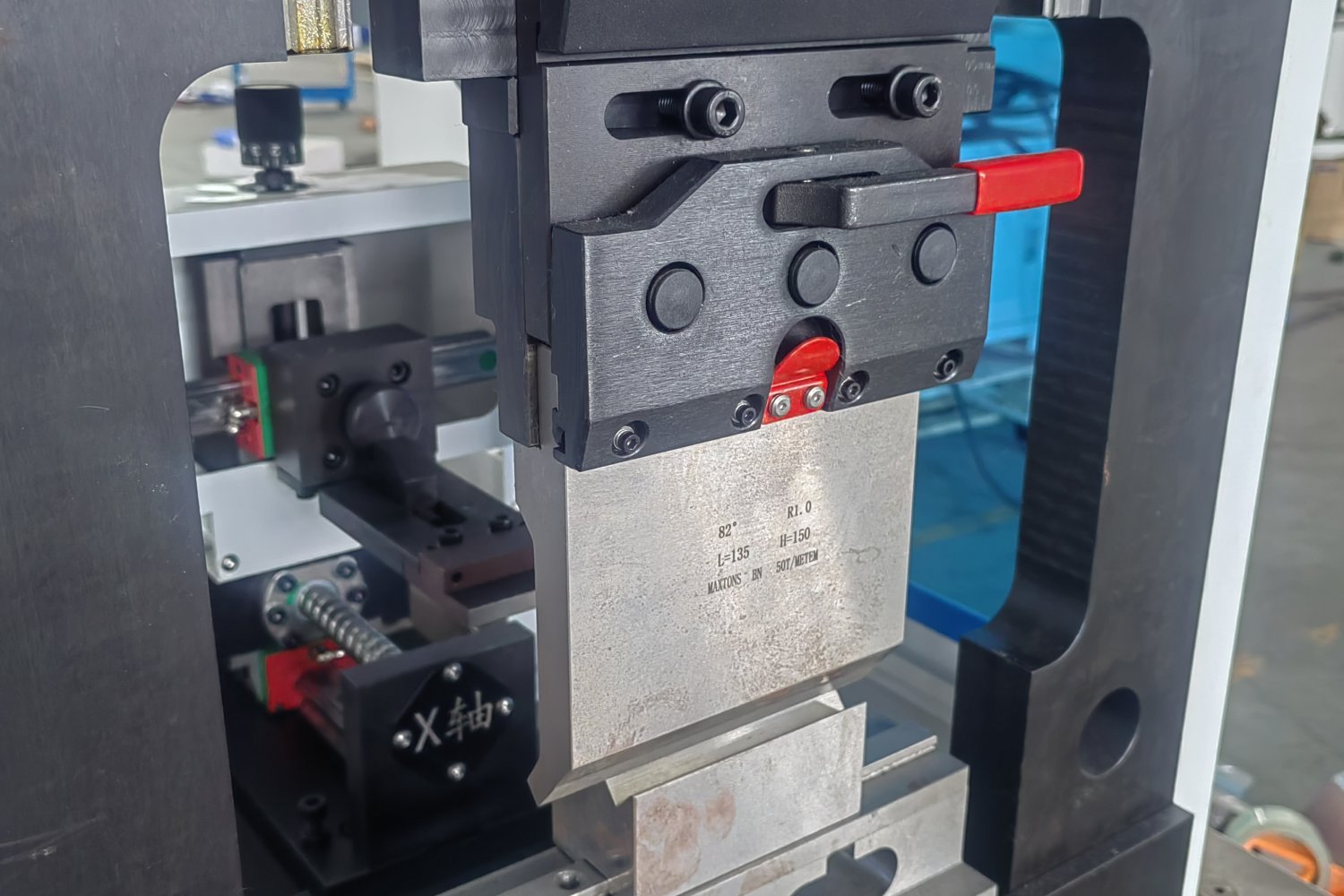

    Fast Clamp
    Easy to change punch die
  • #press brake 200mm

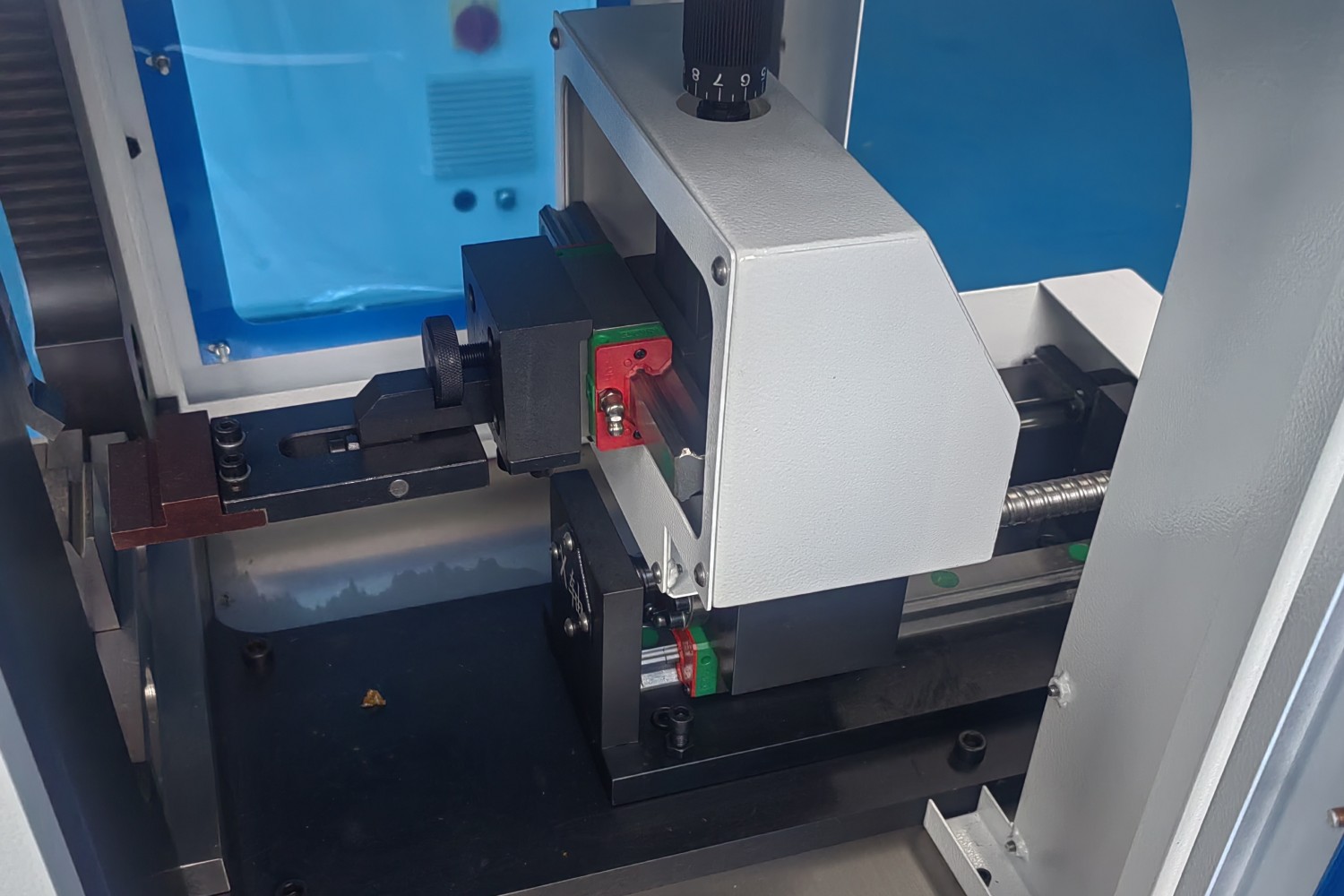

    Backgauge
    Standard configuration: X-axis CNC back gauge, and drive by servo motor
  • #small press brake

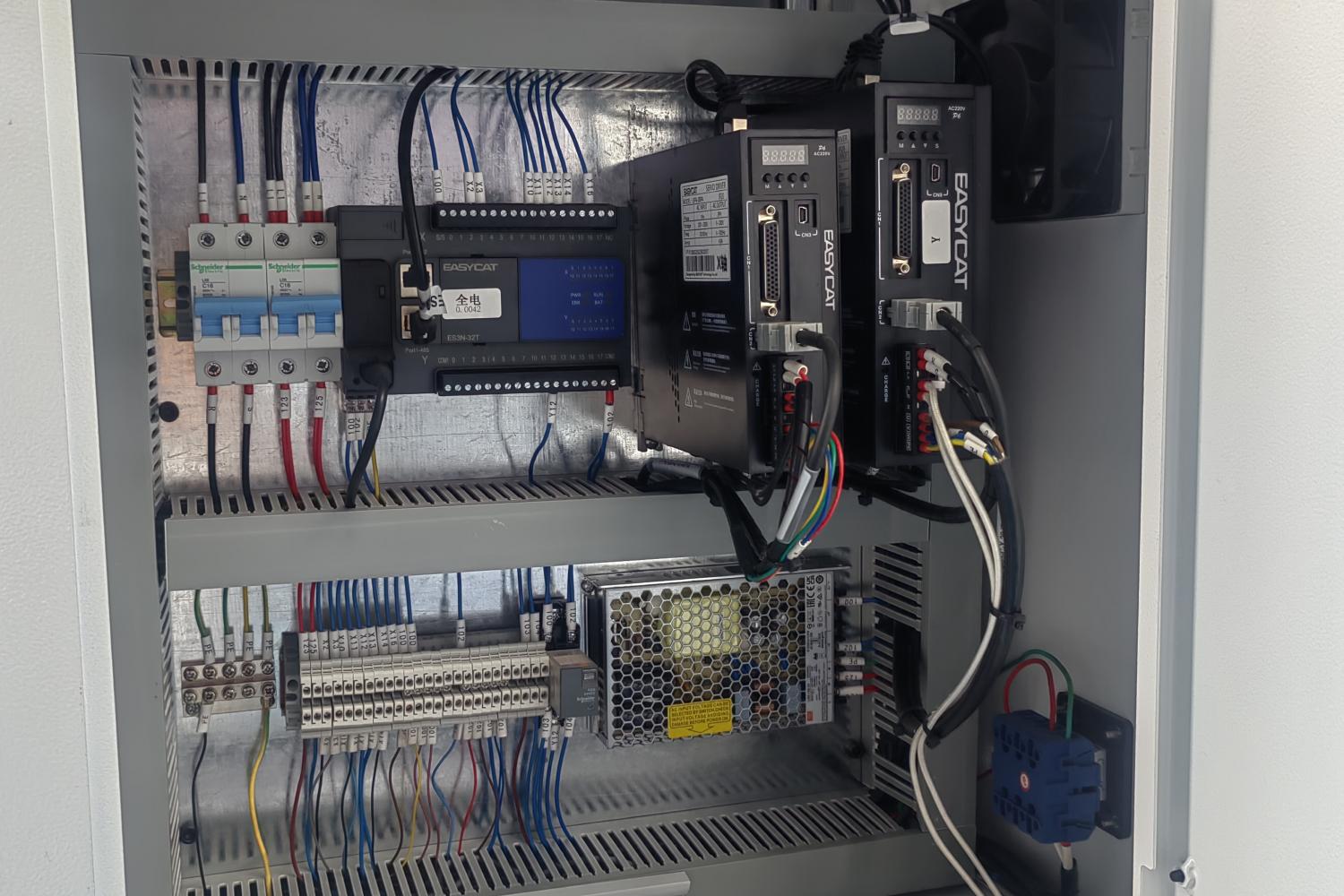

    Electrics
    Adopts France schneider electric and EasyCat servo driver
  • #eco 10es

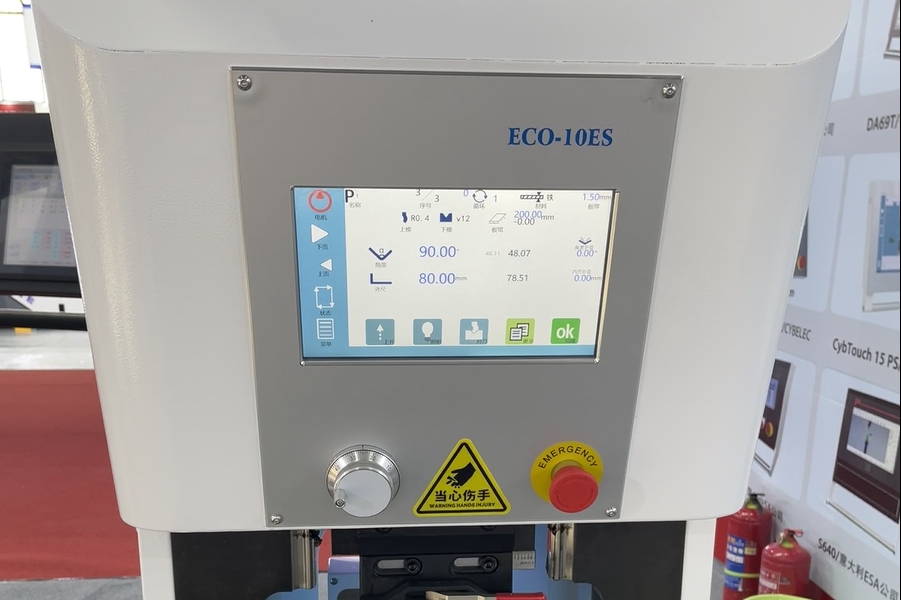

    ECO 10ES Controller
    10‘’ touch screen, store 2000 programs, support English/Chinese


Product Video







Technical Parameters



Model

Bending Pressure Bending Length Polo Distance Throat Depth Slide Strokes Max Open Height Backgauge Travel Main Motor Dimension
Kn Mm Mm Mm Mm Mm Mm Kw Mm
PSS-3T200 3 200 300 / 120 420 150 2 750*800*2000
PSS-6T400 6 400 370 150 120 420 150 3  750*850*2000
PSS-8T3600 8 600 370 150 120 420 150 5.5 750*900*2000
PSS-12T600 12 600 520 150 150 420 150 5.5  750*950*2050
PSS-18T600 18 600 770 150 300 420 250 7.5 750*1000*2100
