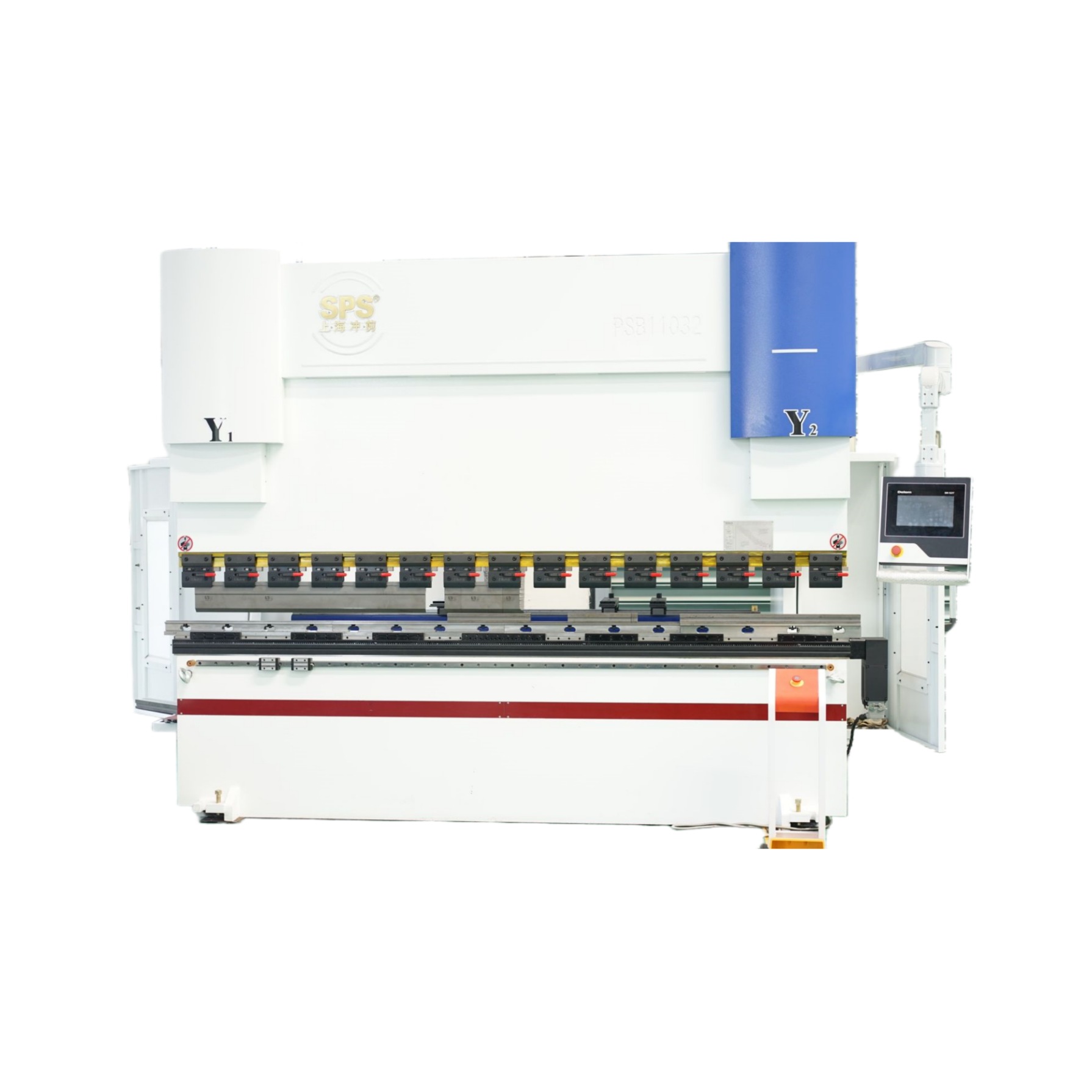

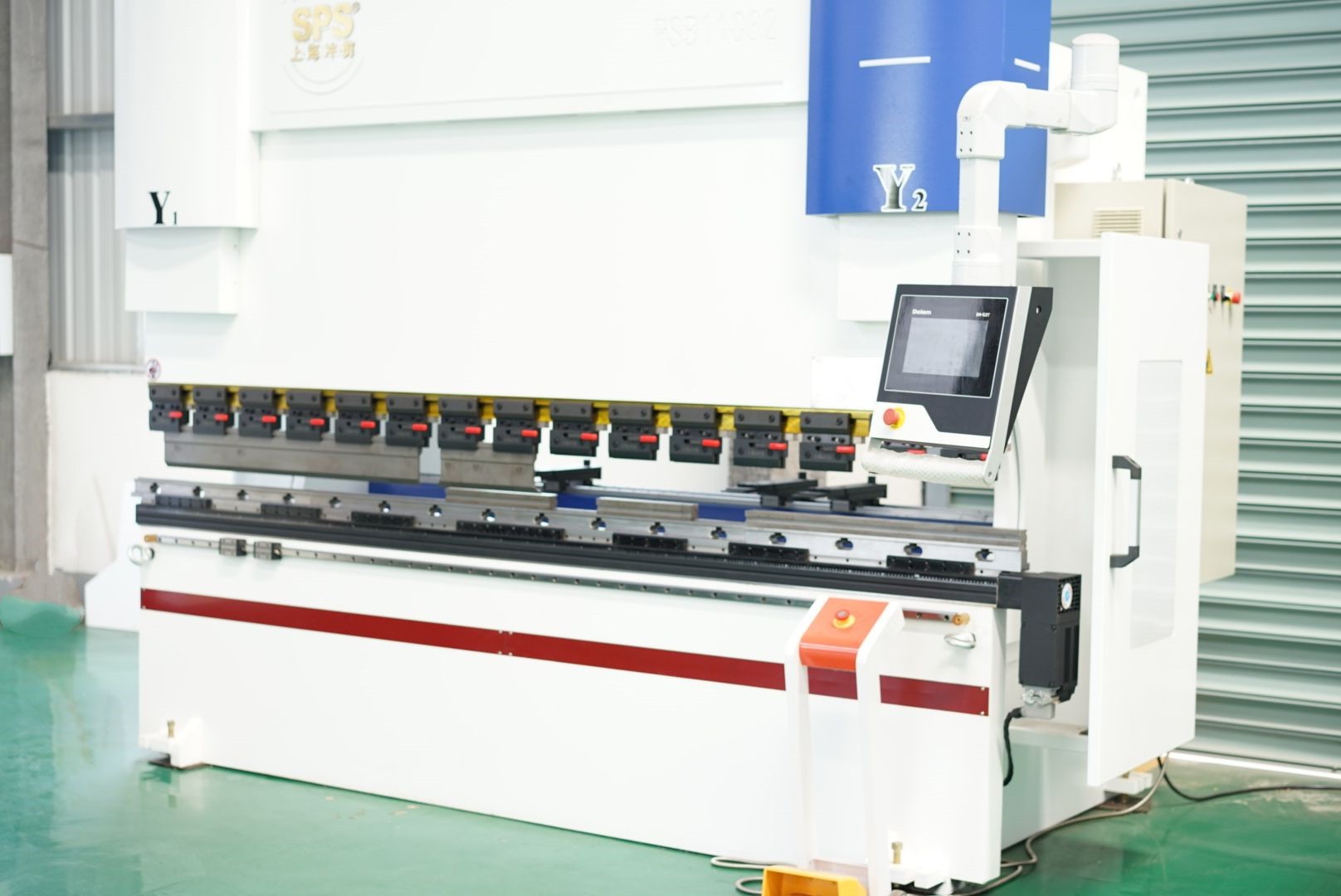

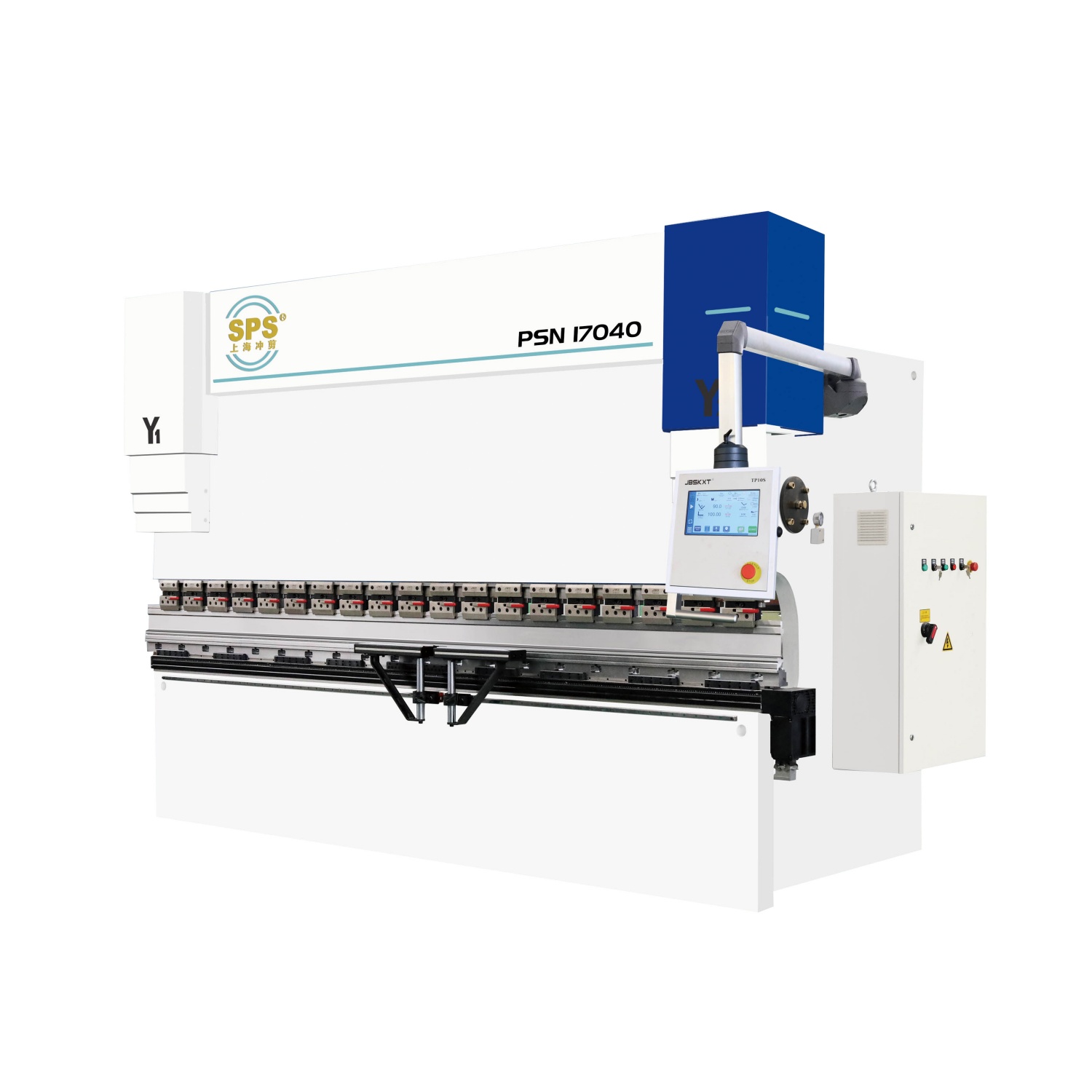

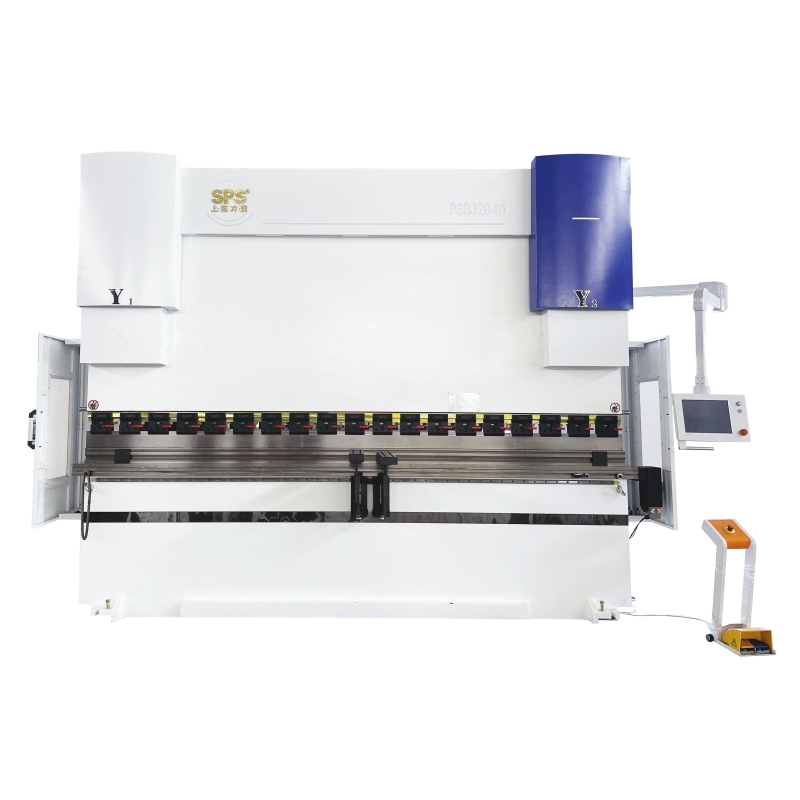

PSM Hybrid CNC Press Brake

- HAVE ePrAx ® Series Dual Servo Pump control system

- Energy Efficiency increased 50%, hydraulic oil requirement reduced by 70%

- Whole machine floor boring processing

- Deeper and thickened throat depth

- Fast and easy tooling changing system

- Imported components from worldwide reliable and famous brand

- Standard DA66S Controller 6+1 axes

- Auto mechanical crowning table

Configurations

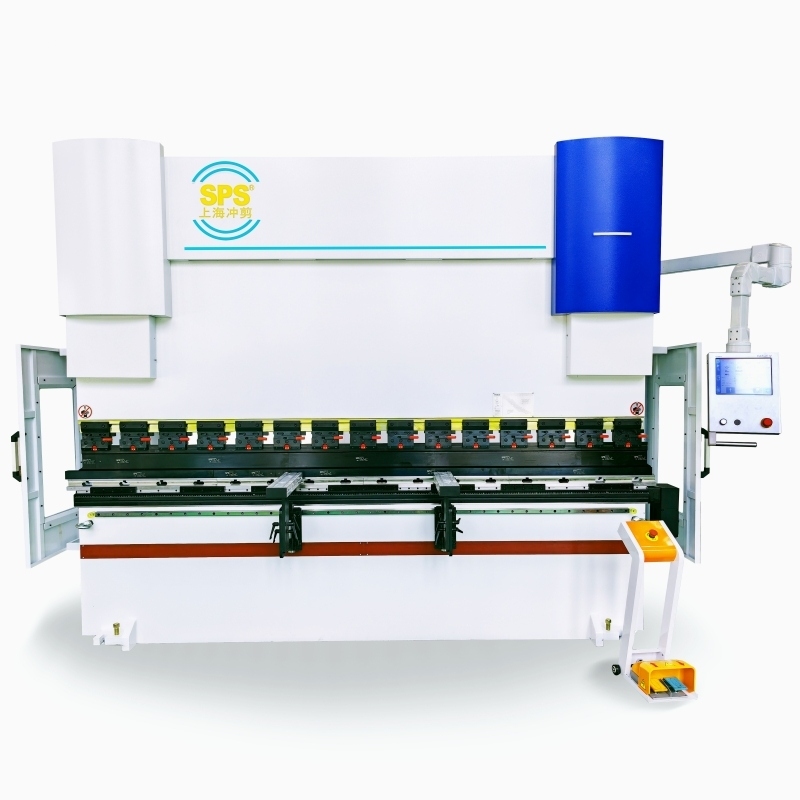

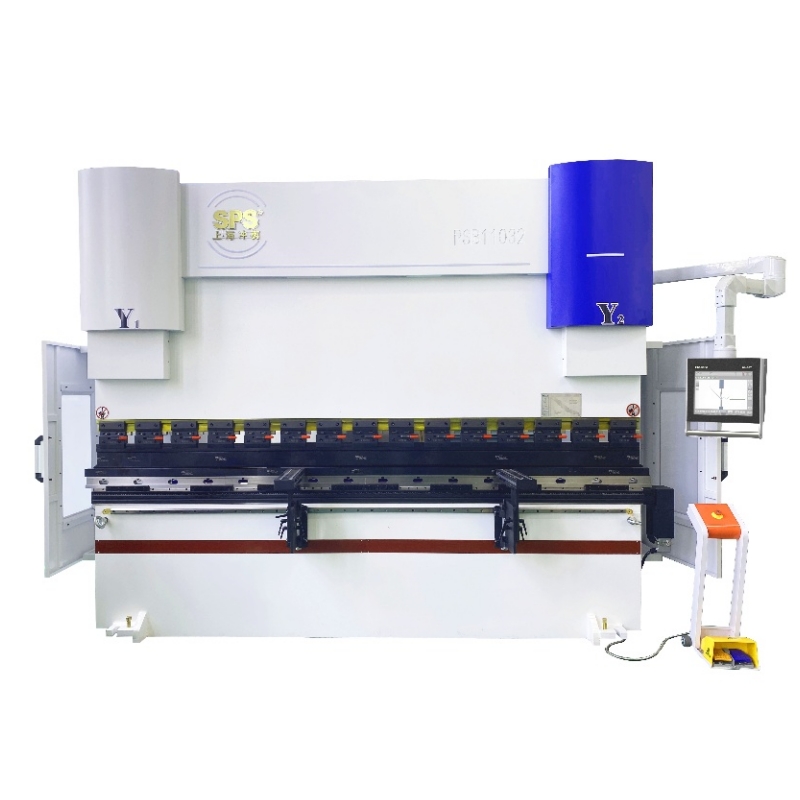

PSM Hybrid CNC Press Brake

SPS ® PSM Hybrid CNC Press Brake adopts Pump control technology replaces conventional valve control technology. The Dual-Servo Oil-Electric Hybrid system controls the quick lowering, bending and return movements of Y1 and Y2 axes through a set of servo motors and servo pumps on the left and right sides. The movements are fast and stable, and the response speed greatly exceeds that of proportional valve control. Compared with PSA Electro-Hydro CNC Press Brake, hydraulic oil usage is reduced by 70%, energy efficiency increase 50%, and lower noise during operation.

Standard Components

24" Delem DA66s Control Unit l Taiwan
HAVE ePrAx ® Series Bidirectional Servo Pump
Y1, Y2, X, R, Z1, Z2 and V Crowningl
Germany EMB Pipe Connector
Estun Servo Main Motor
Movable Stop Fingers on Double Linear Guide Rail
HIWIN Ball Screw and Linear Guide Rail

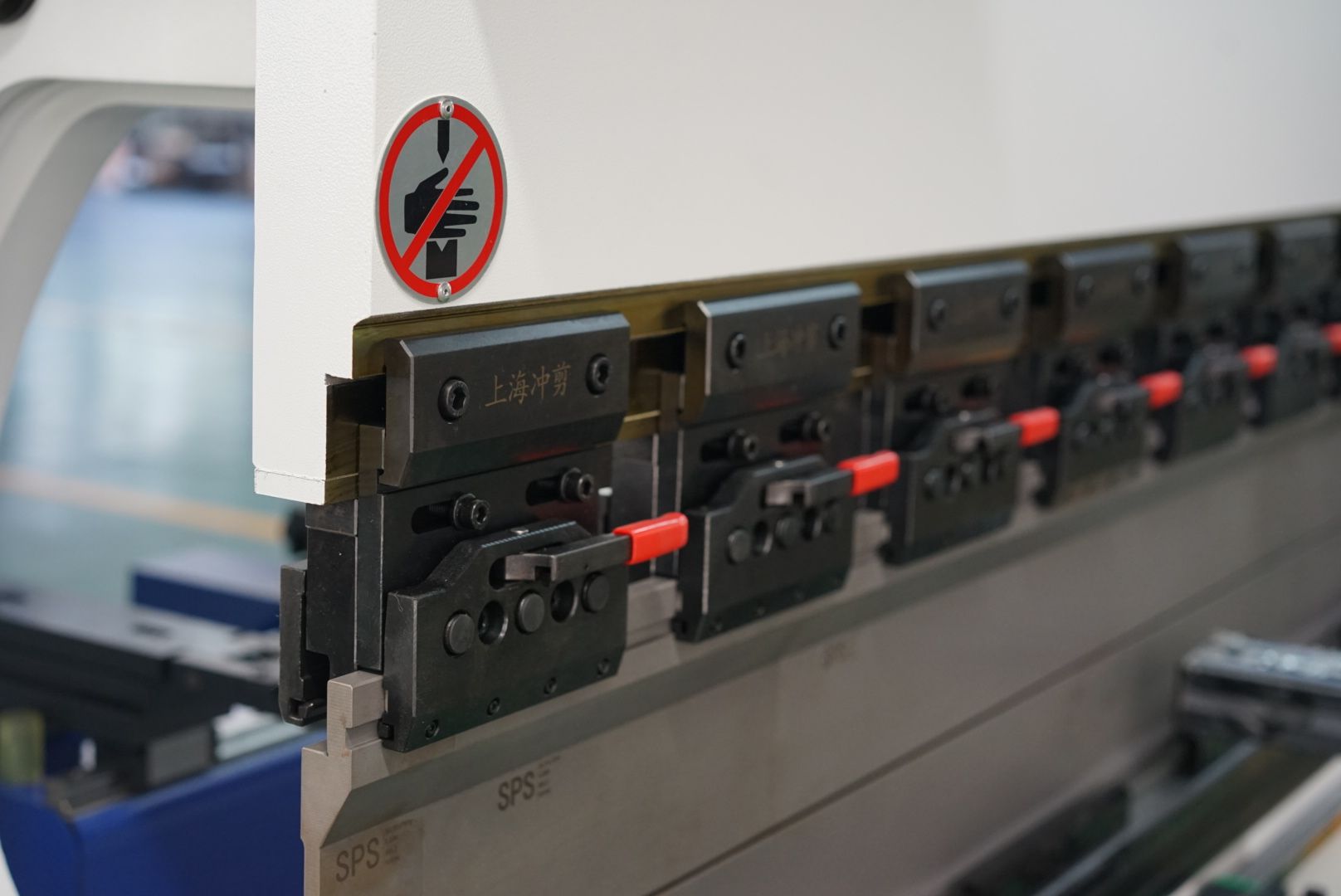

Fast and Easy Tooling Change System
France Schneider Electrics
Korea Foot Pedal with Emergency Stop Button
Spain Fagor Grating Ruler
SPS Group High Precision Punch and Die

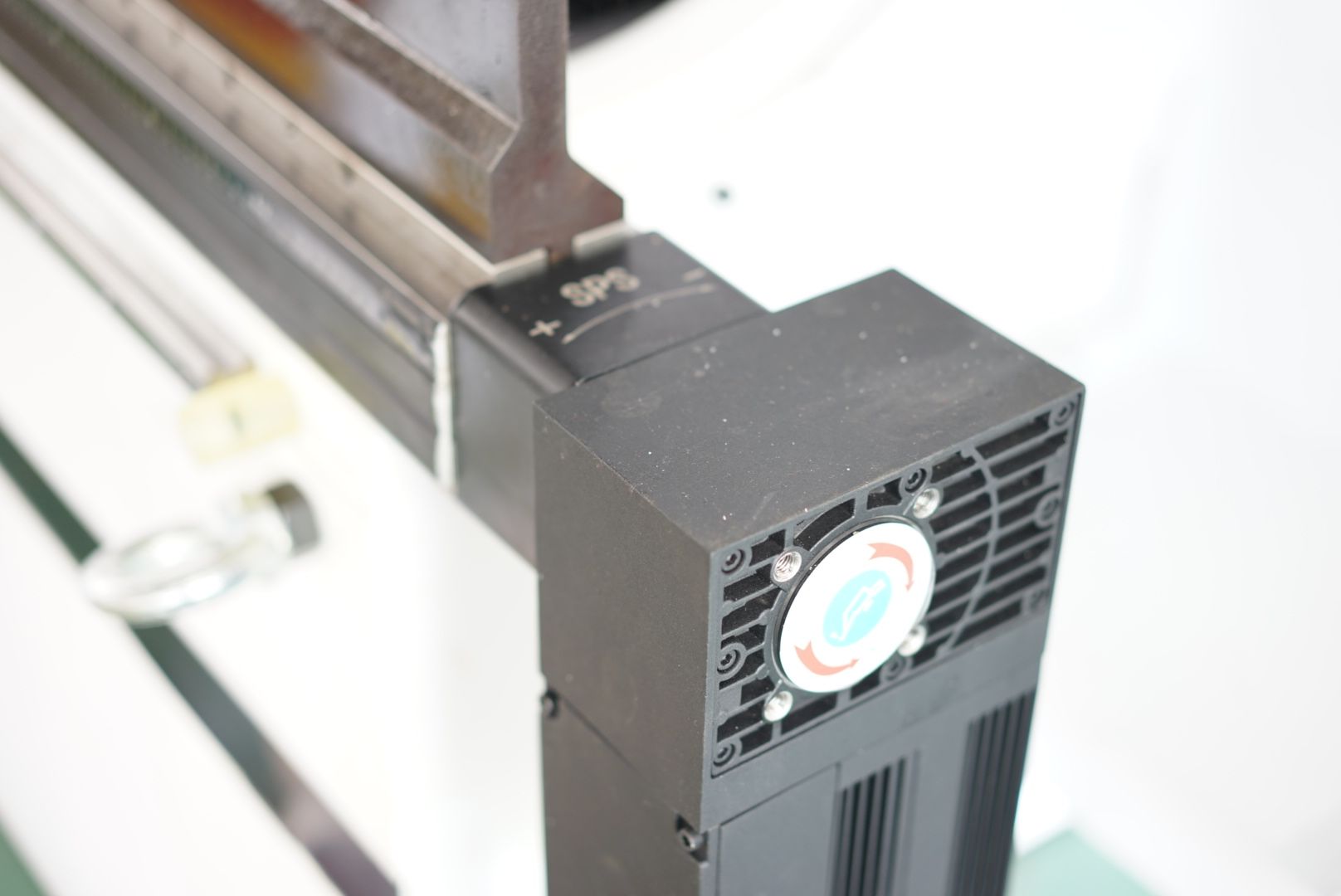

Estun Servo Motor and Driver
SPS Group High Precision Punch and Die

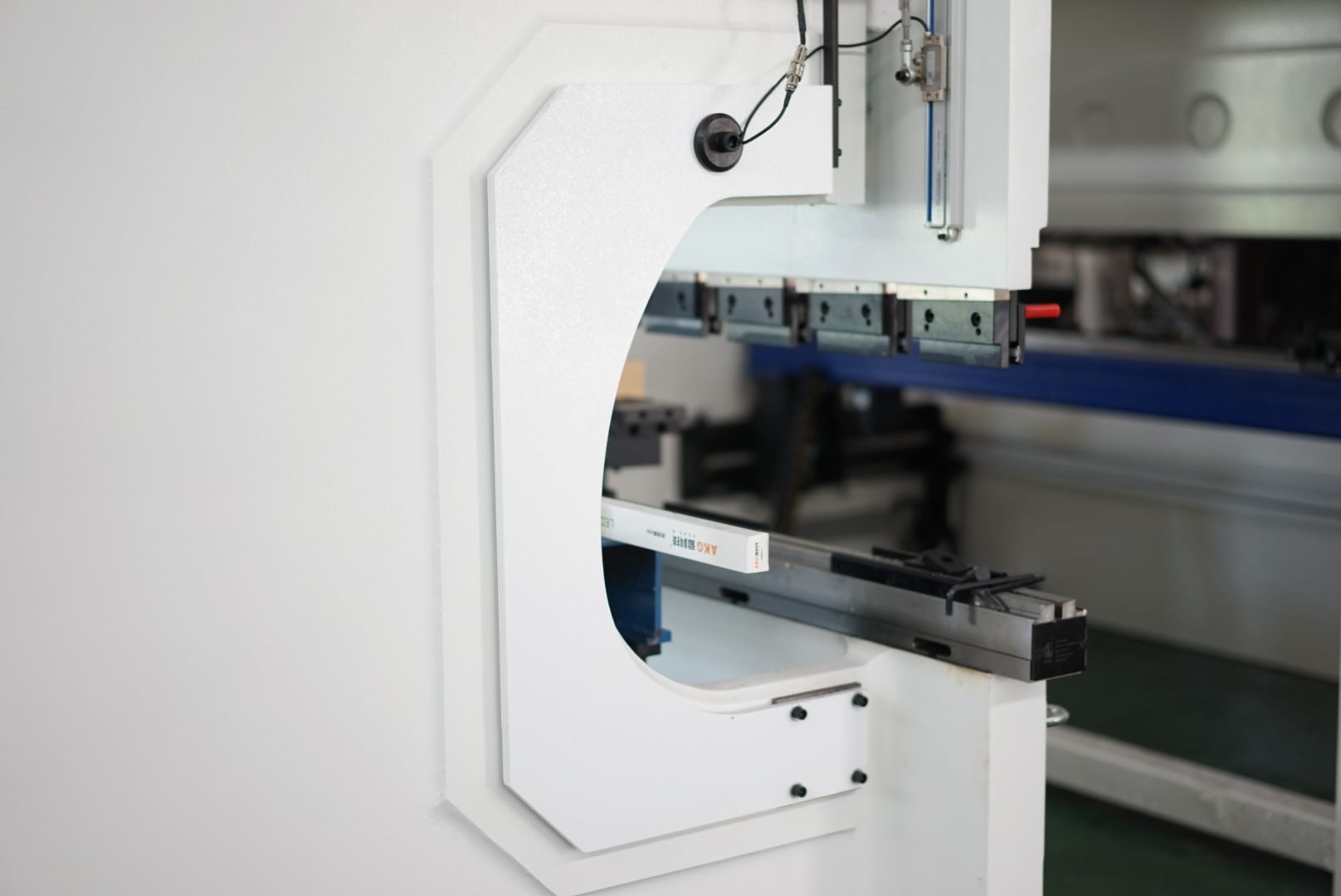

Throat Depth
SPS unique C-type frame design

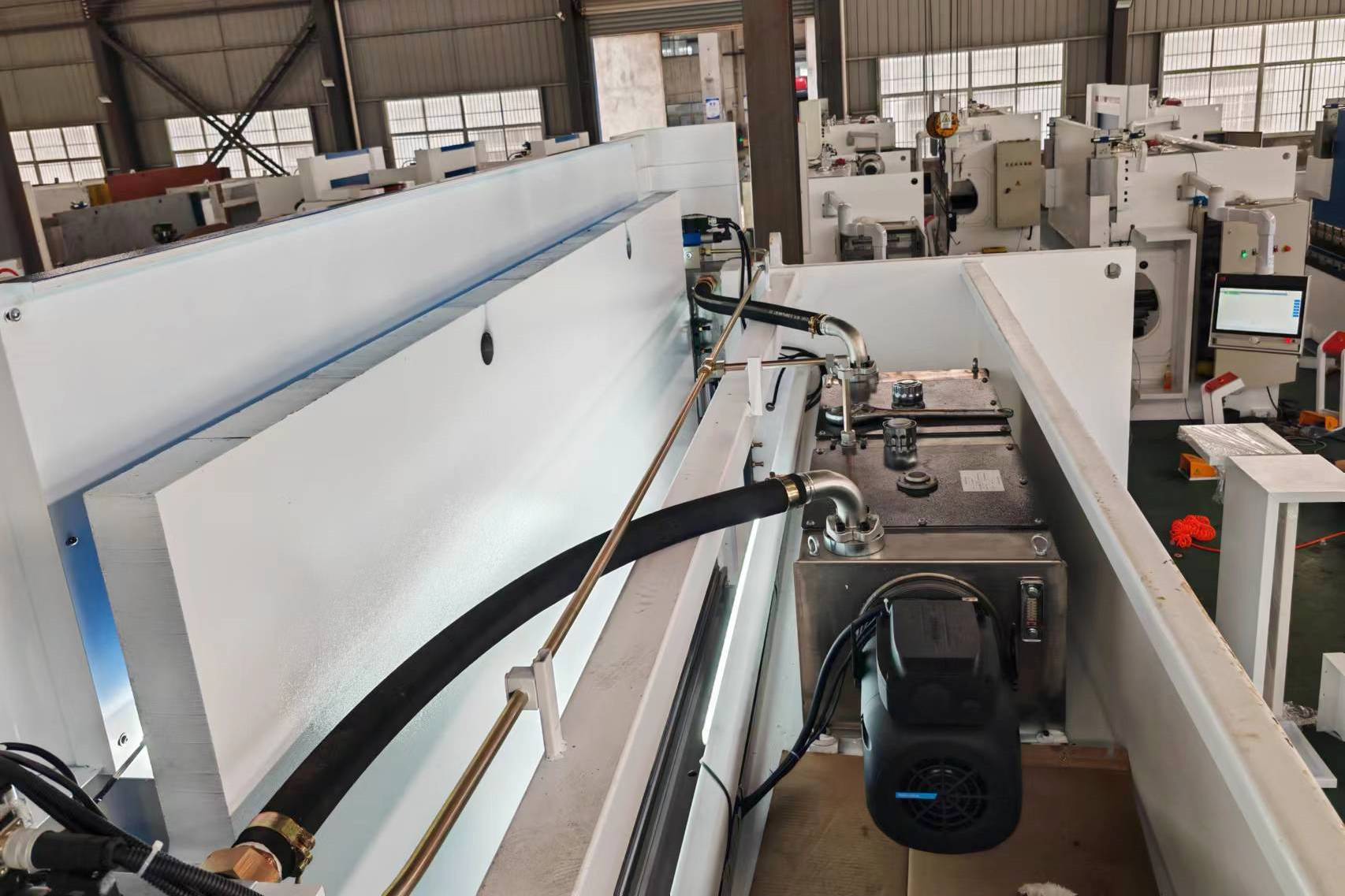

Hybrid Servo System
HAVE ePrAx ® Series Bidirectional Servo Pump control system

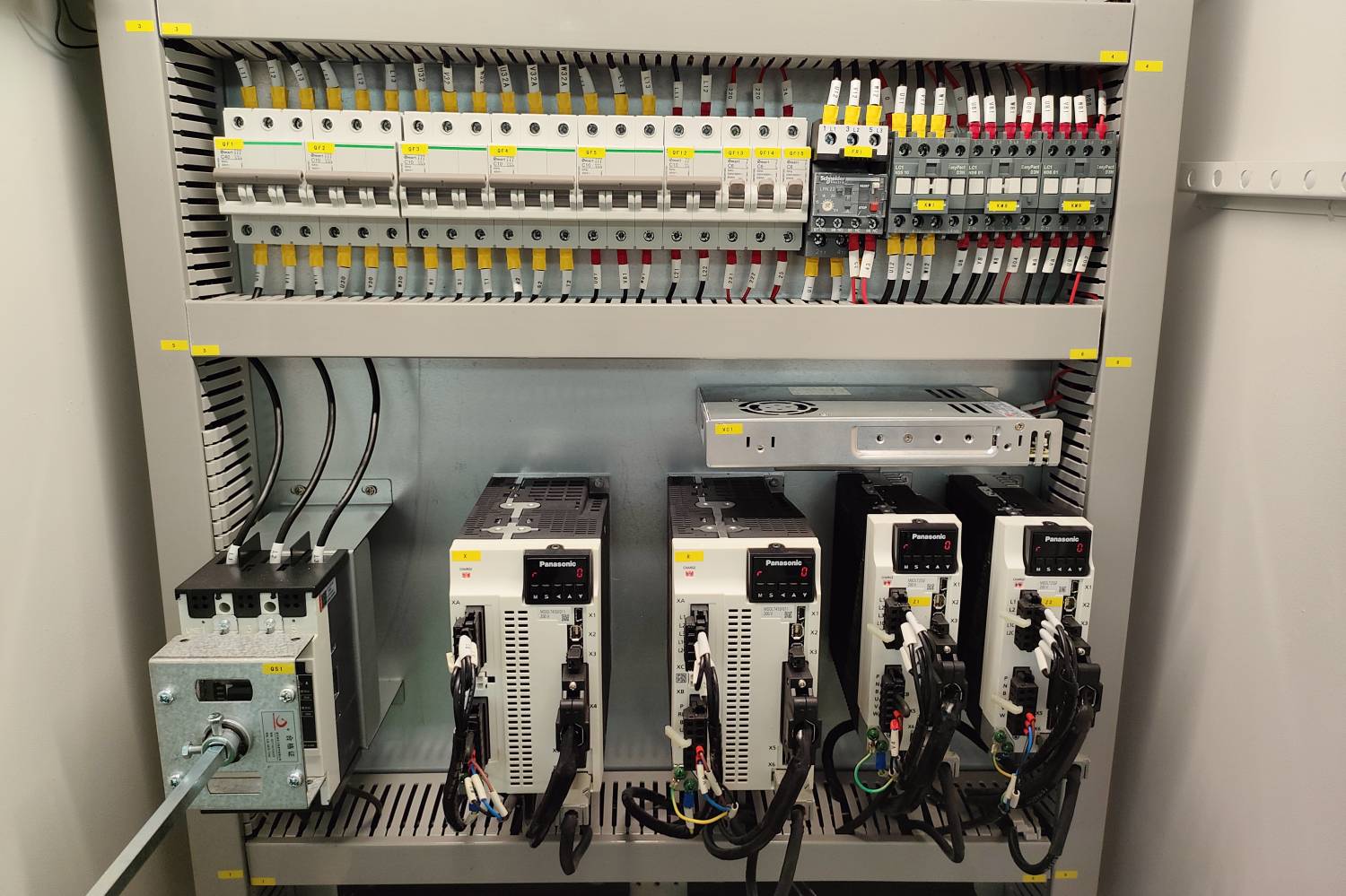

Schneider Electrics
France Schneider main electrics and Estun servo driver

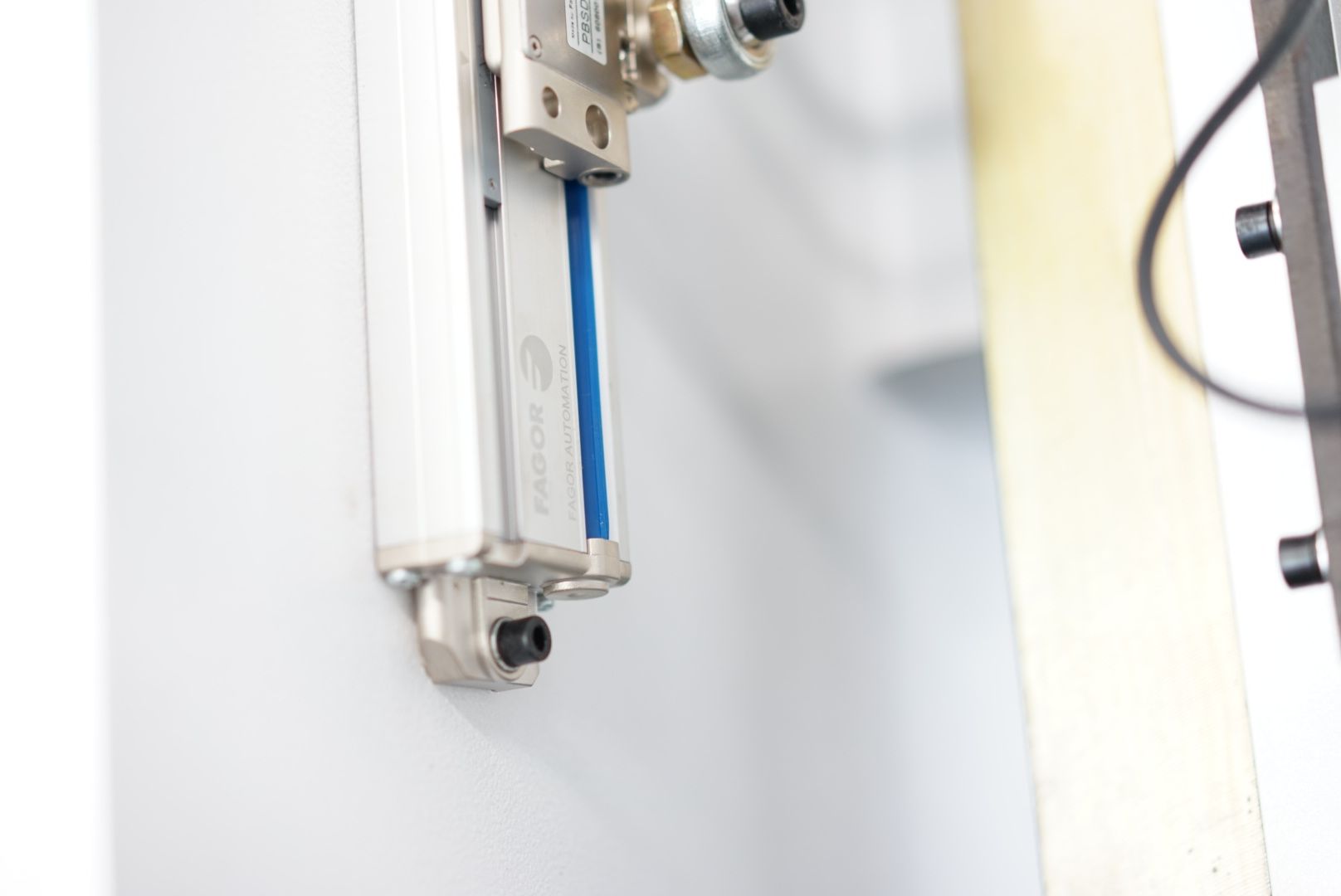

Grating Ruler
France Fagor Grating Ruler

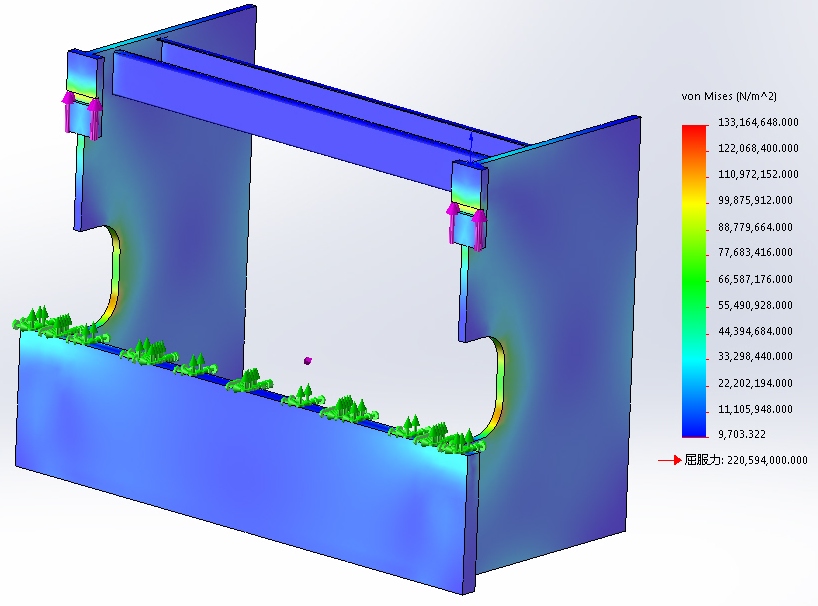

FEA & Stress Analysis

The CAE software SOLIDWORKS used to ensure reasonable frame deformation and high strength. The slider is annealed as a whole and processed as a whole with high precision, which can ensure stable precision for a long time.

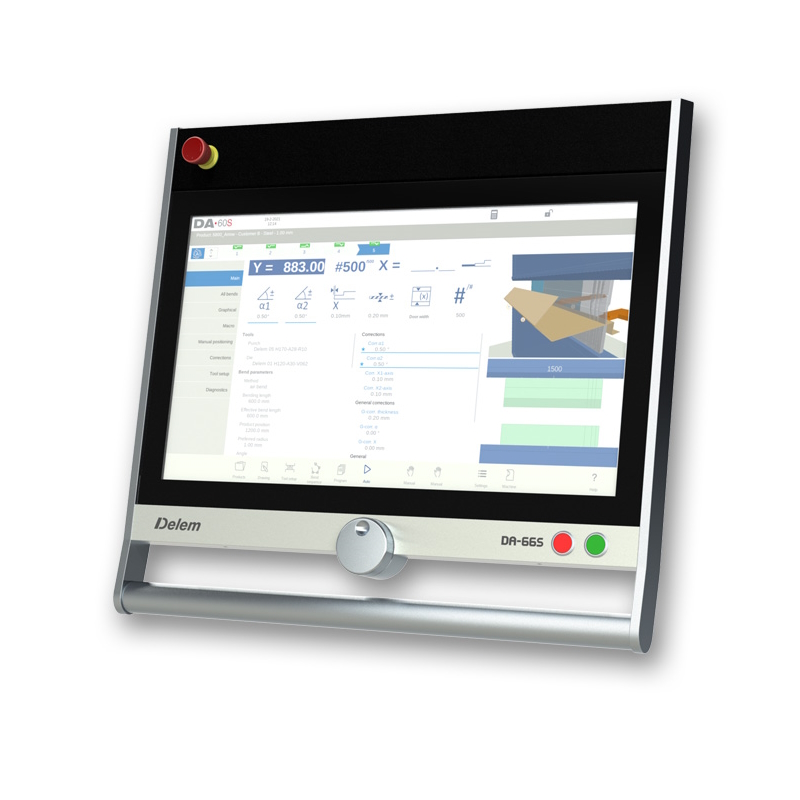

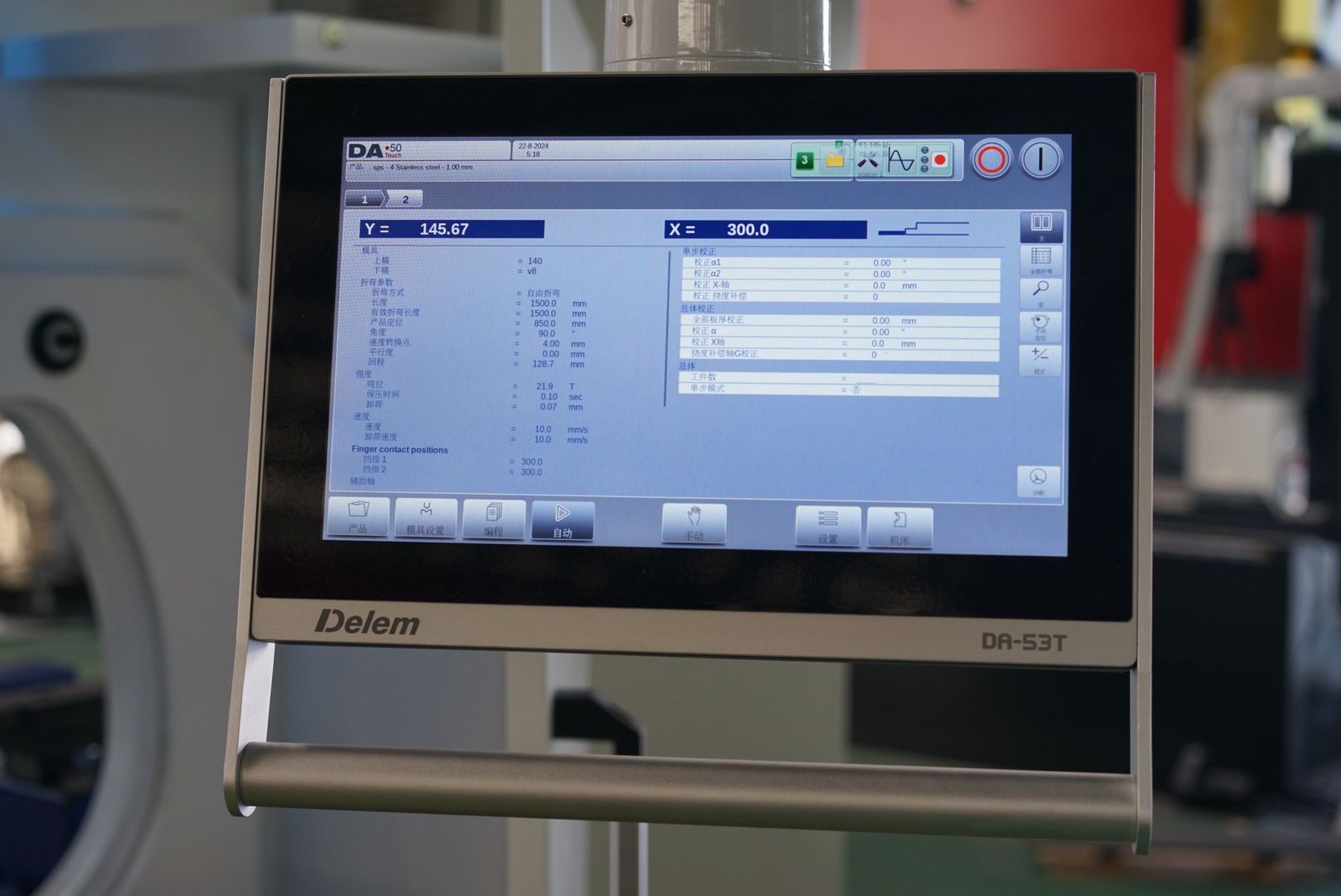

Delem DA66S Control Unit

24" high resolution colour TFT

2D graphic programming

3D machine representation, in simulation and production

USB, peripheral interfacing

User specific application support within the control's multitasking environment

Sensor bending & correction interface

Profile-S2D offline software

SPS® Auto Crowning Table

The workbench is equipped with a deflection compensation mechanism to compensate for the deformation of the workbench and slider to ensure the accuracy of the workpiece. The adjustment method is mainly for the user to input a value to the CNC system based on the actual angle error of the workpiece being processed, and the CNC system will automatically adjust the compensation.

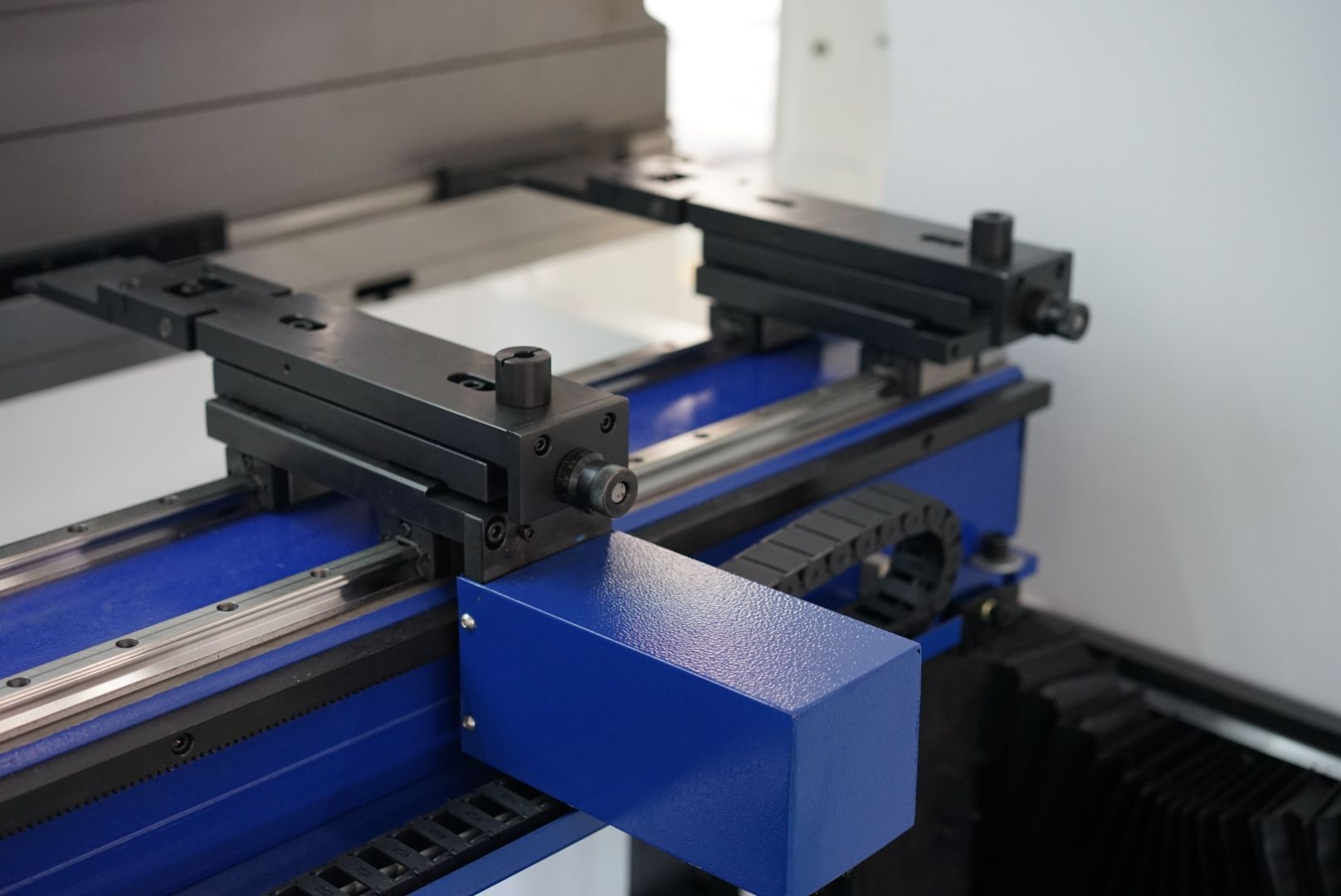

SPS® 4 Axes Backgauge

PSM Hybrid CNC Press Brake Backgauge is assembled by ball screw, linear guide rail, and motorized stopper finger.

It is equipped with CNC X-axis, R-axis, Z1 and Z2-axis as standard. The X-axis travel is 0-600mm. There are 4 pcs of stoppers on the stopper beam, two of which can be automaticlly moved left and right to stop the material according to different material width, and it has a manual fine-tuning structure. The back stopper beam is annealed and suitable for gantry processing center processing, with good stability and high precision.

Optional Components

l DA66S 2D Programming

l Backgauge 6 Axes Device

l Italy DSP Laser Protection

l Auto Bending Follower Support

l Bending Angle Measurement

l CE Economic Light Curtain

l High Precision Multi-V Die

l WILA Hydraulic Clamping System

l WILA Tooling and Worktable System

l DA53Tx, DA58T, DA66T, DA69T, CT8, CT12, CT15

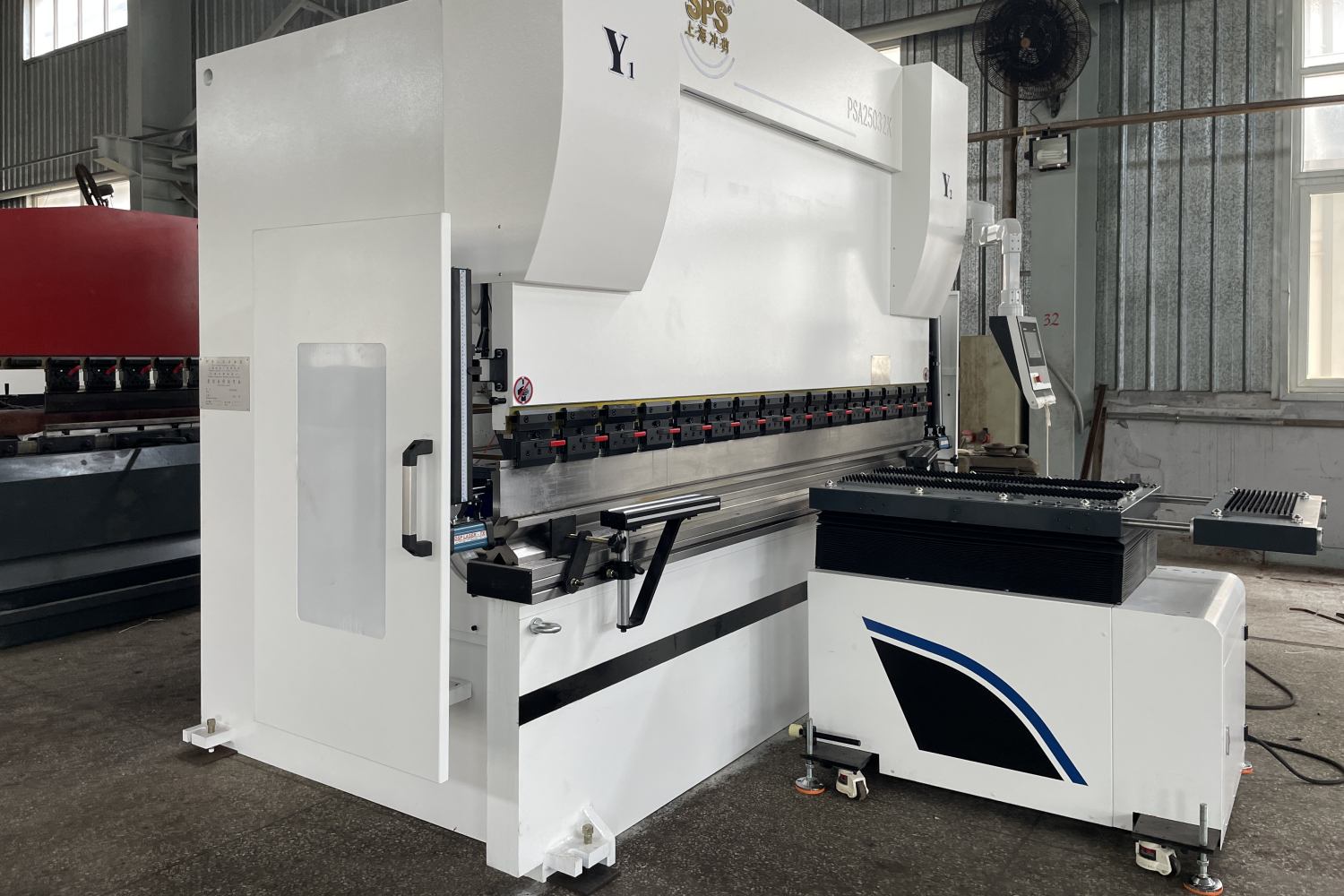

Auto Bending Follower

Suitable for various large-scale plate bending work, reducing the workload of operators and improving efficiency and precision

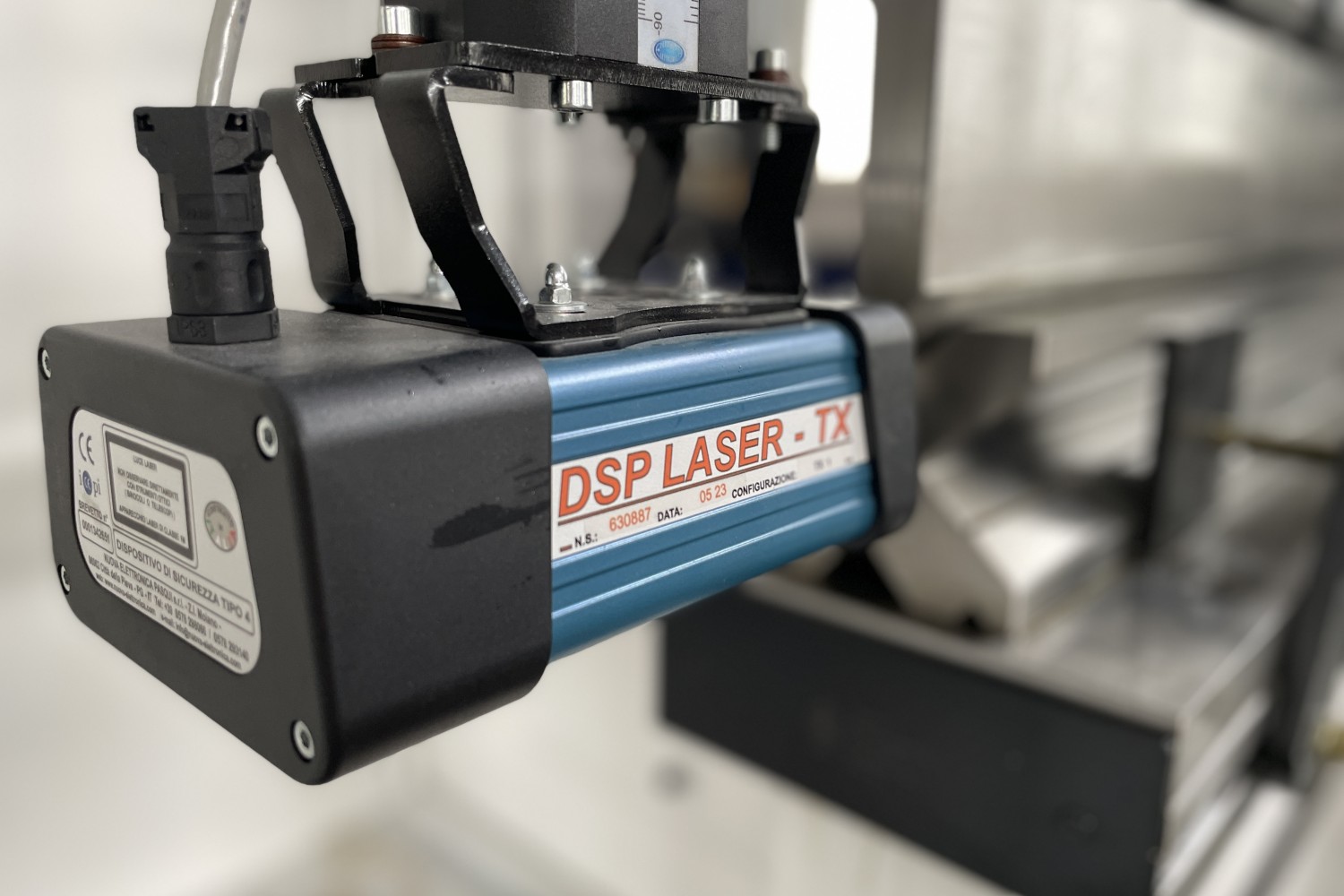

DSP Laser Protection
Europe CE Standard, Protection grade IP65, Safety level reaches CAT.4 and SIL3
CNC Controller

SPS offers a full line control system of Delem, Cybelec, Esa, and other controllers according to your preference.
Easy Fast Clamping
We supply Wila, Amada and Double Side Fast Claming System.

Product Video

Technical Parameters

Model	Bending Pressure	Bending Length	Polo Distance	Throat Depth	Slide Strokes	Max Open Height	Backgauge Travel	Main Motor	Dimension
Model	Kn	Mm	Mm	Mm	Mm	Mm	Mm	Kw	Mm
PSM-63T2500	630	2500	2000	350	150	320	600	5.5	270013402000
PSM-80T2500	800	2500	2000	350	150	460	600	5.5	280014502450
PSM-110T3200	1100	3200	2700	400	200	480	600	7.5	380018002650
PSM-110T4000	1100	4000	3500	400	200	480	600	11	460018002650
PSM-130T3200	1300	3200	2700	400	200	480	600	11	380018002700
PSM-130T4000	1300	4000	3500	400	200	480	600	11	460018002700
PSM-170T3200	1700	3200	2700	450	200	480	600	15	380020502800
PSM-170T4000	1700	4000	3500	450	200	480	600	15	460020502800
PSM-220T3200	2200	3200	2700	450	200	480	600	18.5	380021002900
PSM-220T4000	2200	4000	3500	450	200	480	600	18.5	460021002900
PSM-220T5000	2200	5000	3900	450	200	540	600	18.5	560021002900
PSM-250T3200	2500	3200	2700	450	250	540	600	18.5	350022002900
PSM-250T4000	2500	4000	3500	450	250	540	600	22	430022002900
PSM-250T5000	2500	6000	4900	450	250	540	600	22	540022003100
