PSN NC Press Brake TP10S

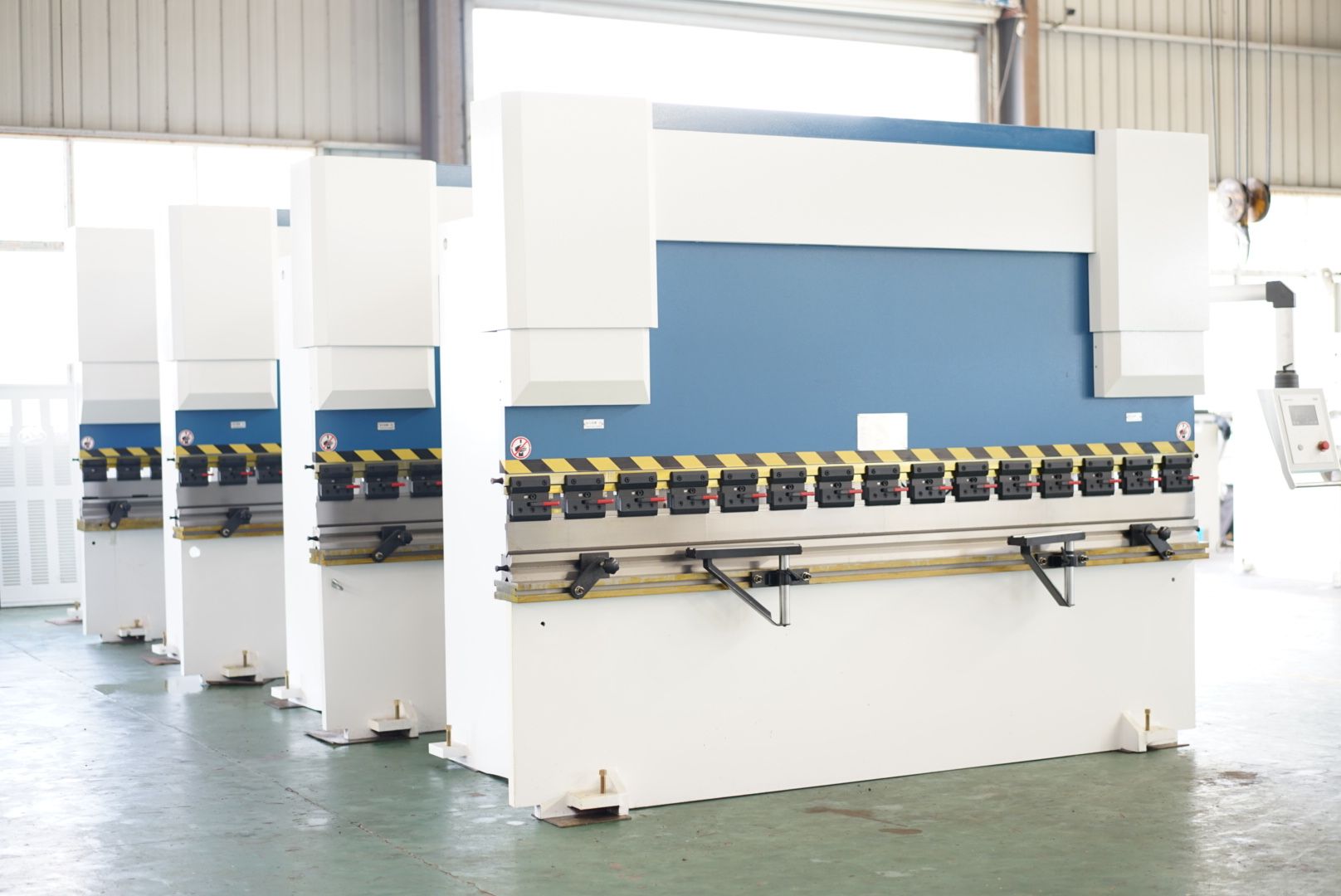

SPS ® PSN Torsion Bar NC Press brake machine is a general equipment for bending various metal sheets, while equip with different bending toolings, it can be folding into different workpieces. SPS hydraulic press brake TP10S are widely used in shipbuilding, automobiles, vehicles, mining machinery, petroleum, electric power and other industries.

SPS ® NC hydraulic press brake is mainly driven by 2 hydraulic cylinder to drive the slider to move the mold up and down. The machine has an integral structure and the frame is welded, which is easy to manufacture and install. The whole machine has good rigidity and high strength.

Standard Components

l TP10S Control Unit	l Taiwan HIWIN Ball Screw and Linear Guide Rail
l Standard Y and X 2 Axis	l Germany EMB Pipe Connector
l Germany Siemens Main Motor	l Movable Stop Fingers on Dual Linear Guide Rail
l Germany Rexroth Hydraulic Valve	l Japan NOK Sealings
l France Schneider Electrics	l Korea Foot Pedal with Emergency Stop Button
l USA First/Sunny Oil Pump	l Fast and Easy Tooling Change System
l EasyCat servo motor and driver	l SPS Group High Precision Punch and Die

Torsin Bar Structure
SPS stronger torsion bar strcure

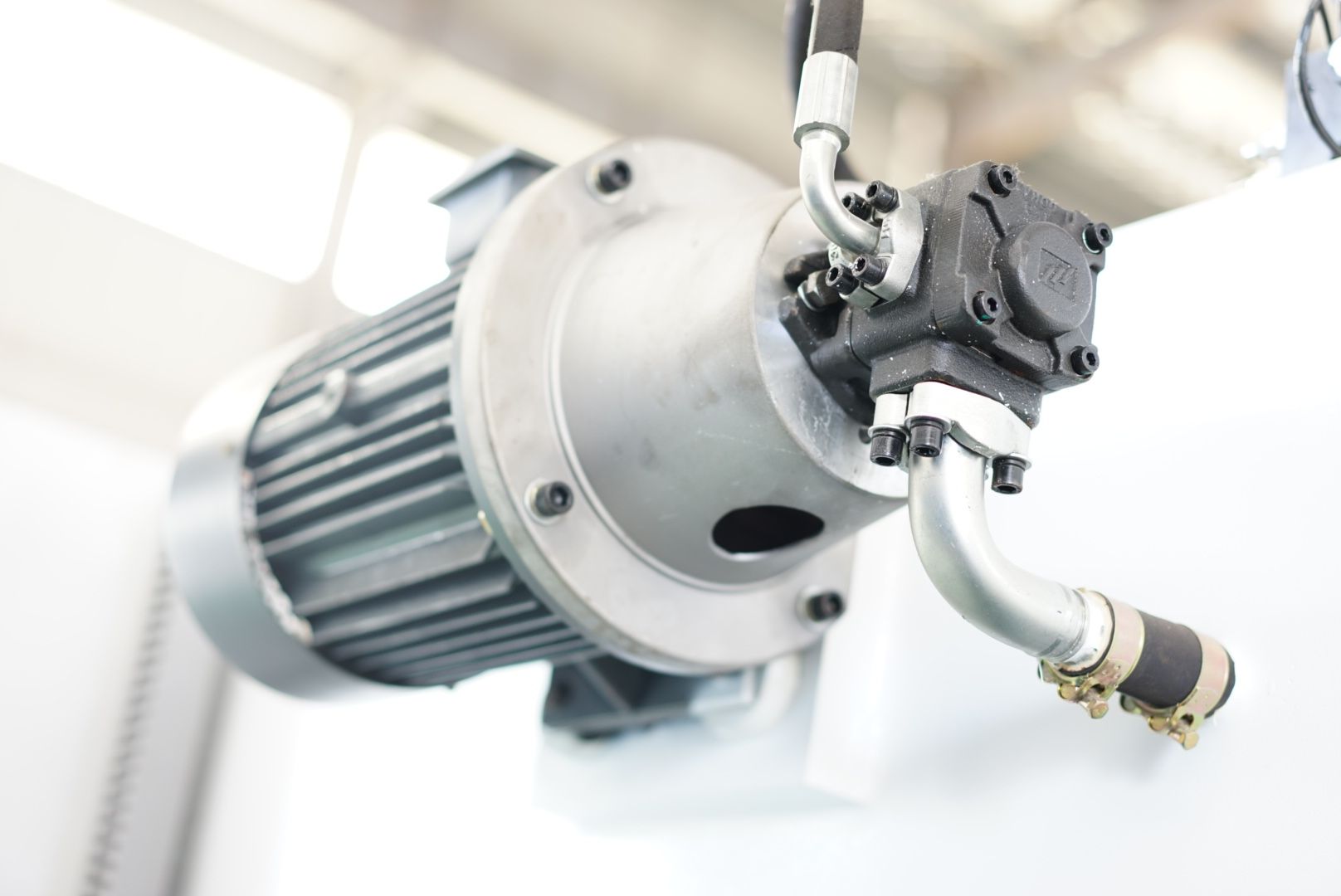

Siemens Main Motor
High efficiency level reduces energy consumption and saves costs for the user.

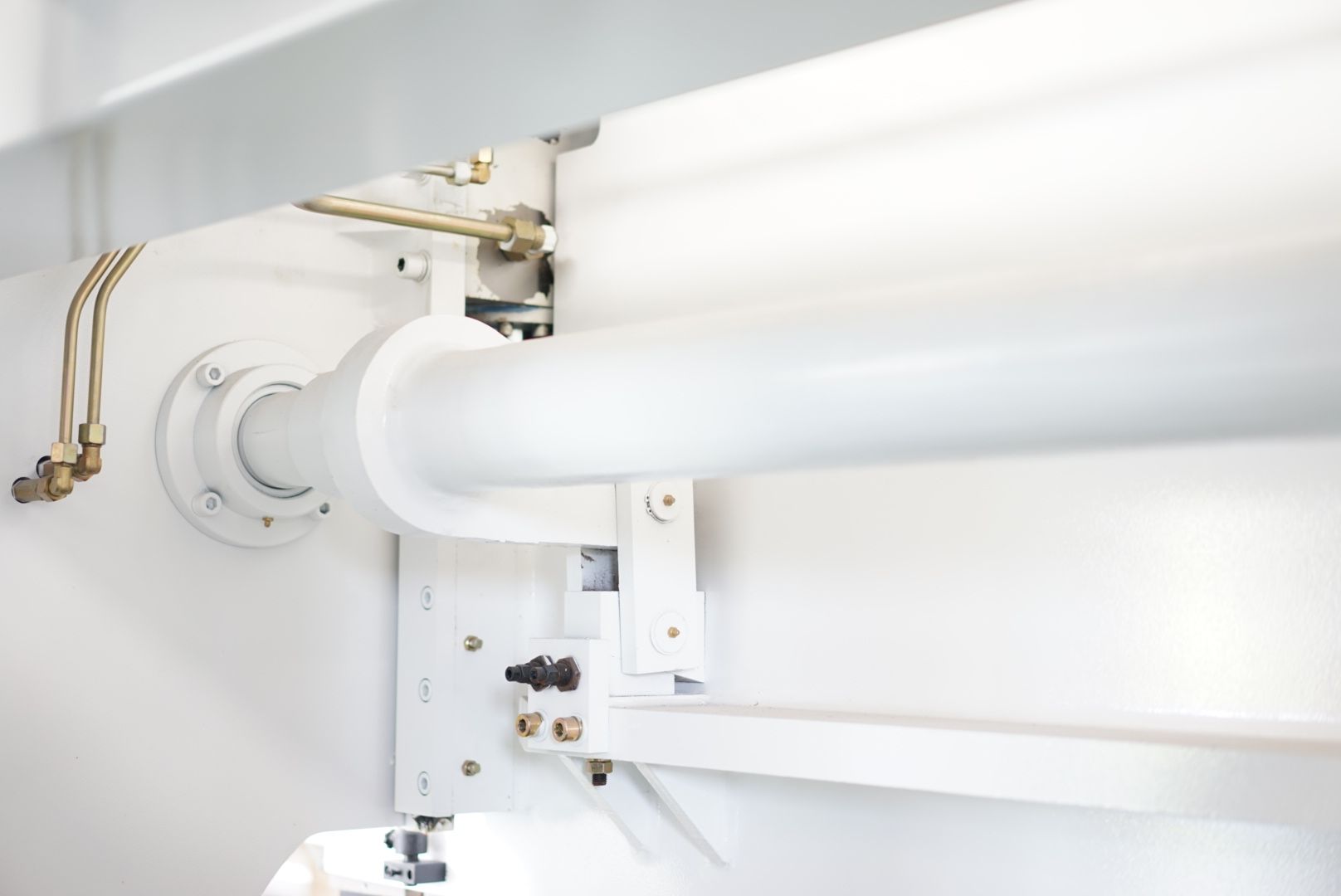

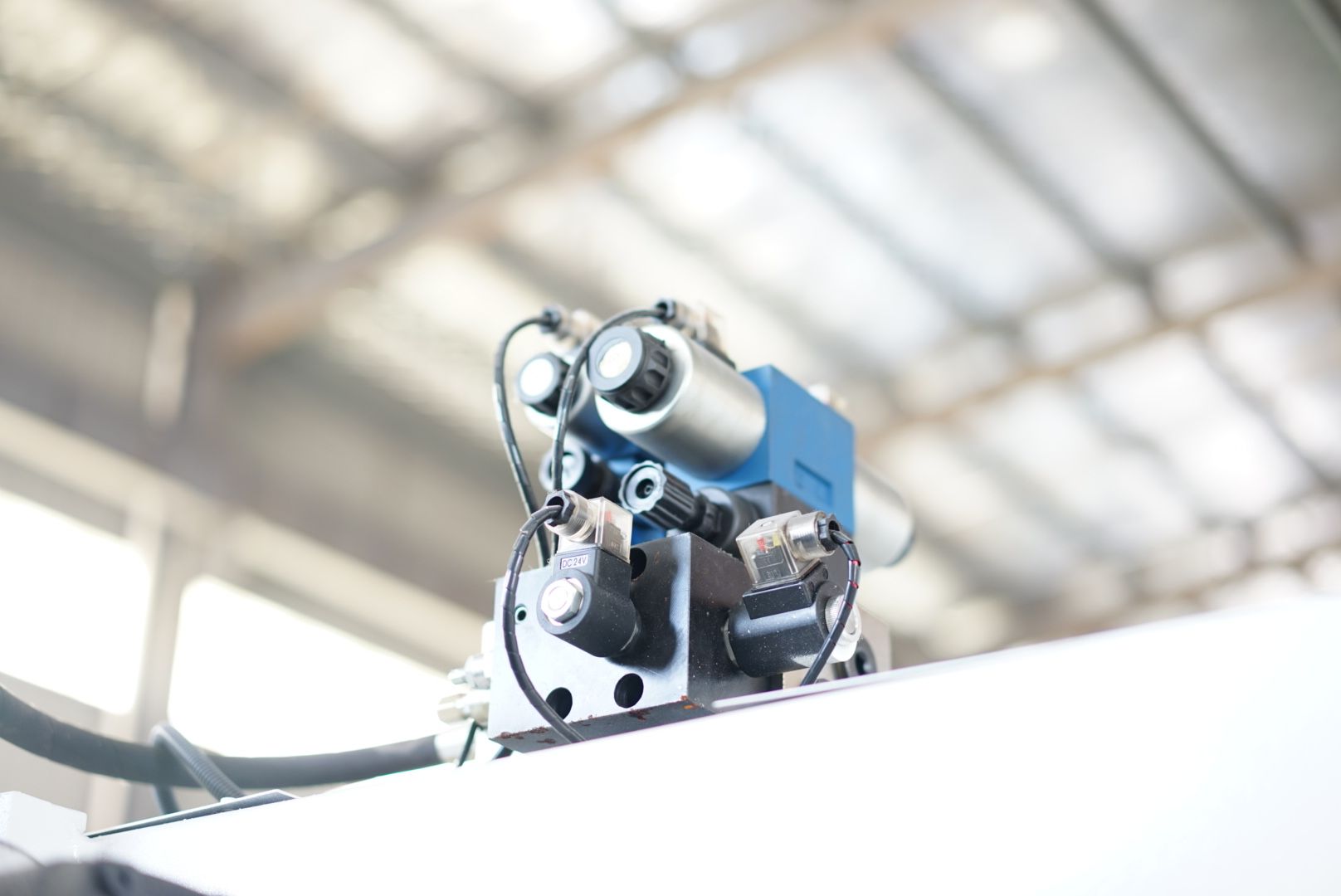

Rexroth Valve
Famous hydraulic system can ensure the stability and enhancing highly the reliability of the machine

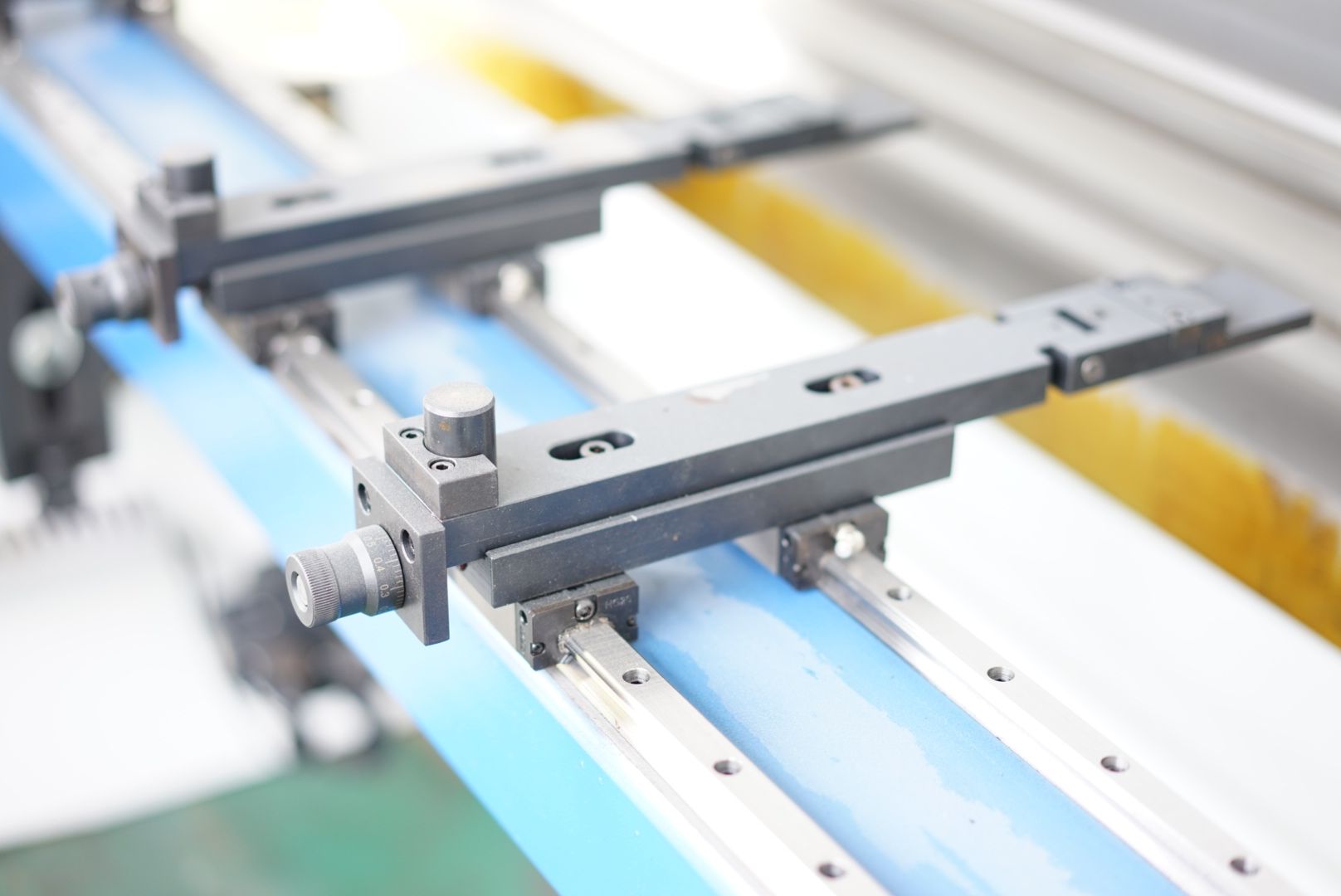

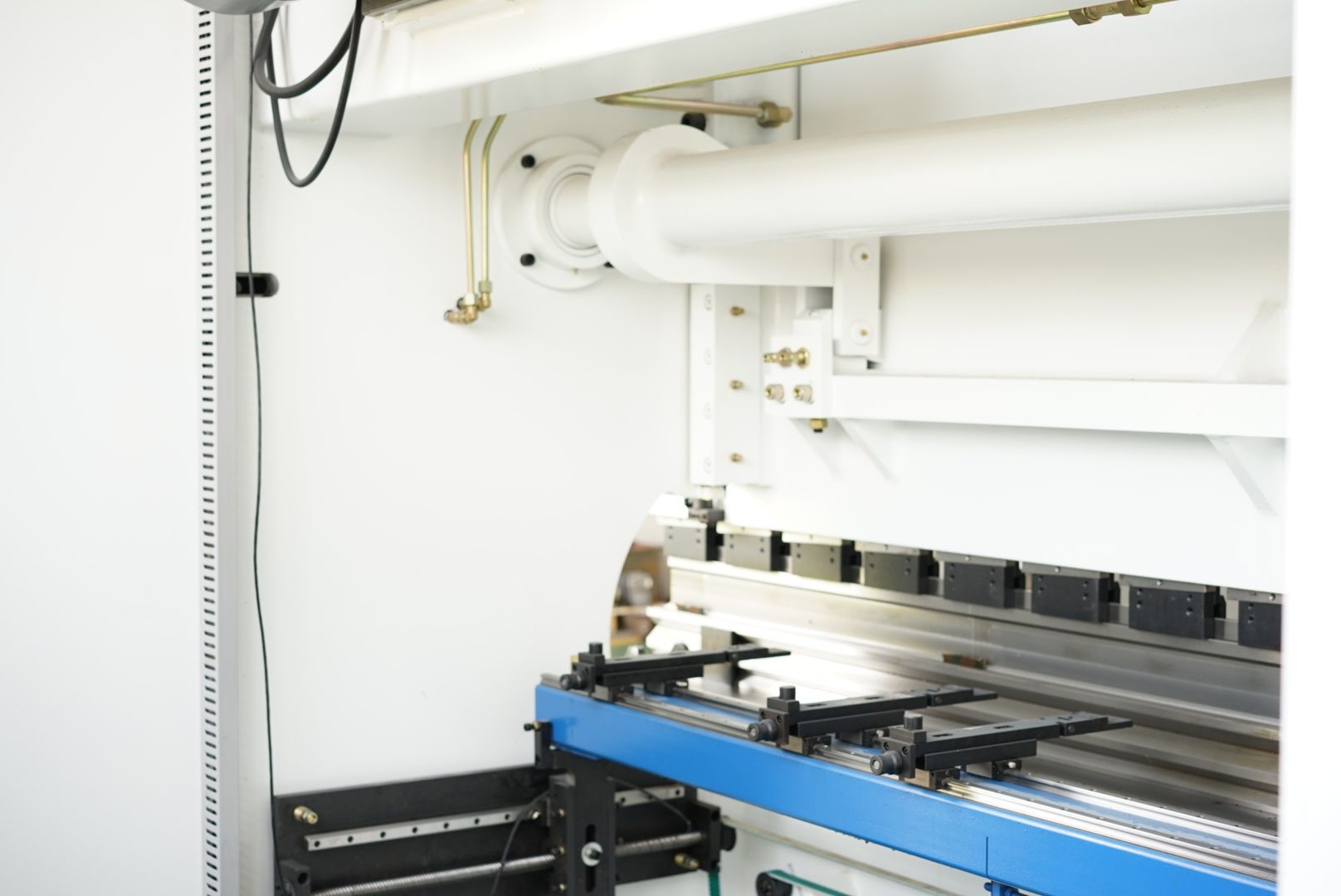

Backgauge Stop Fingers
Movable stop finger on double linear guide rail.

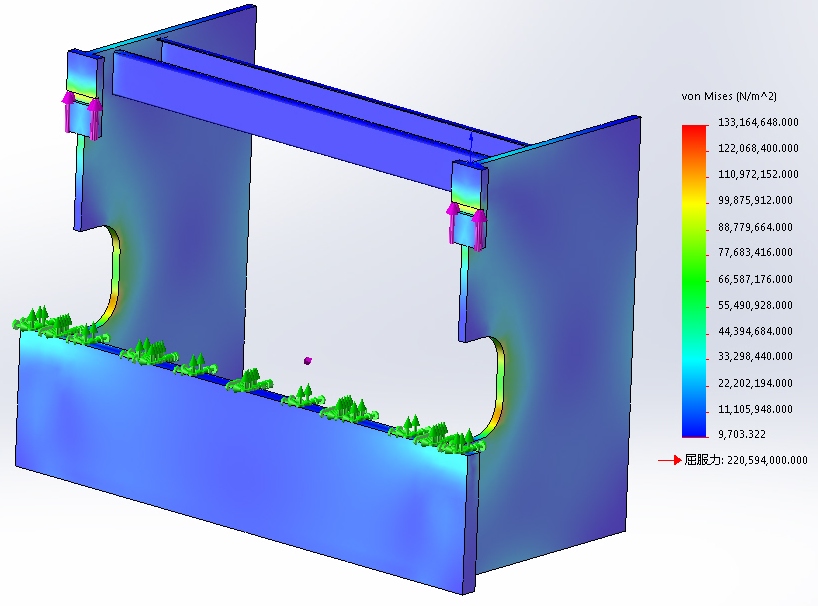

FEA & Stress Analysis

The CAE software SOLIDWORKS used to ensure reasonable frame deformation and high strength. The slider is annealed as a whole and processed as a whole with high precision, which can ensure stable precision for a long time.

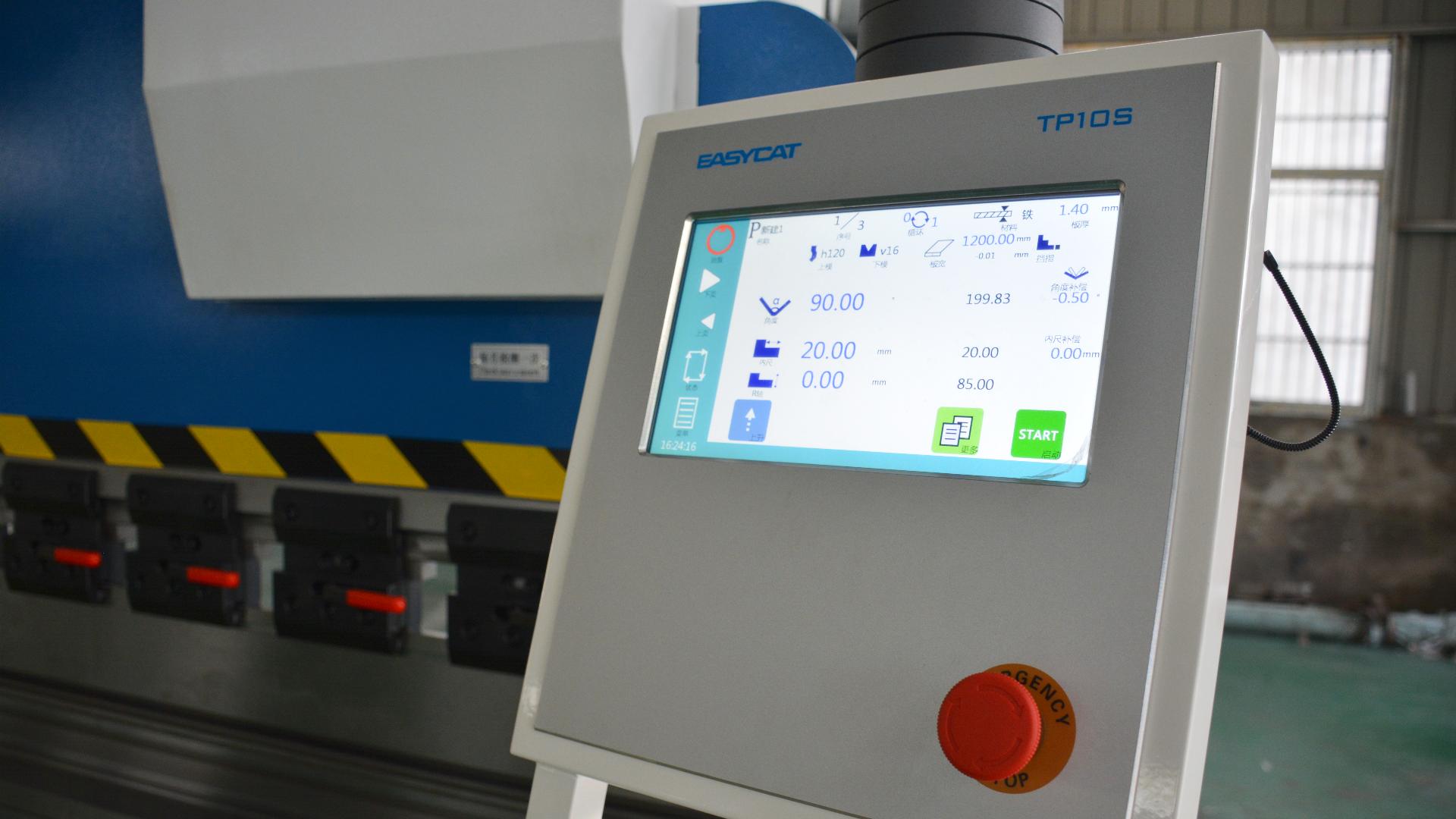

TP10S Control Unit

Up to 4+1 axes (Y1, Y2, X, R and V crowning)

10'' colorful touch screen

Angle programming, system automatic caculate depth

X and Y axis position control

220 programs, 24 steps per program

English/Chinese

SPS® Torsin Bar Structure

SPS ® NC Hydraulic Press Brake euip with the strengthen torsion shaft mechanical structure, ensure that the machine remains stable and durable after long-term use. It using high precision magnetic encoders for reliable and precision positioning.

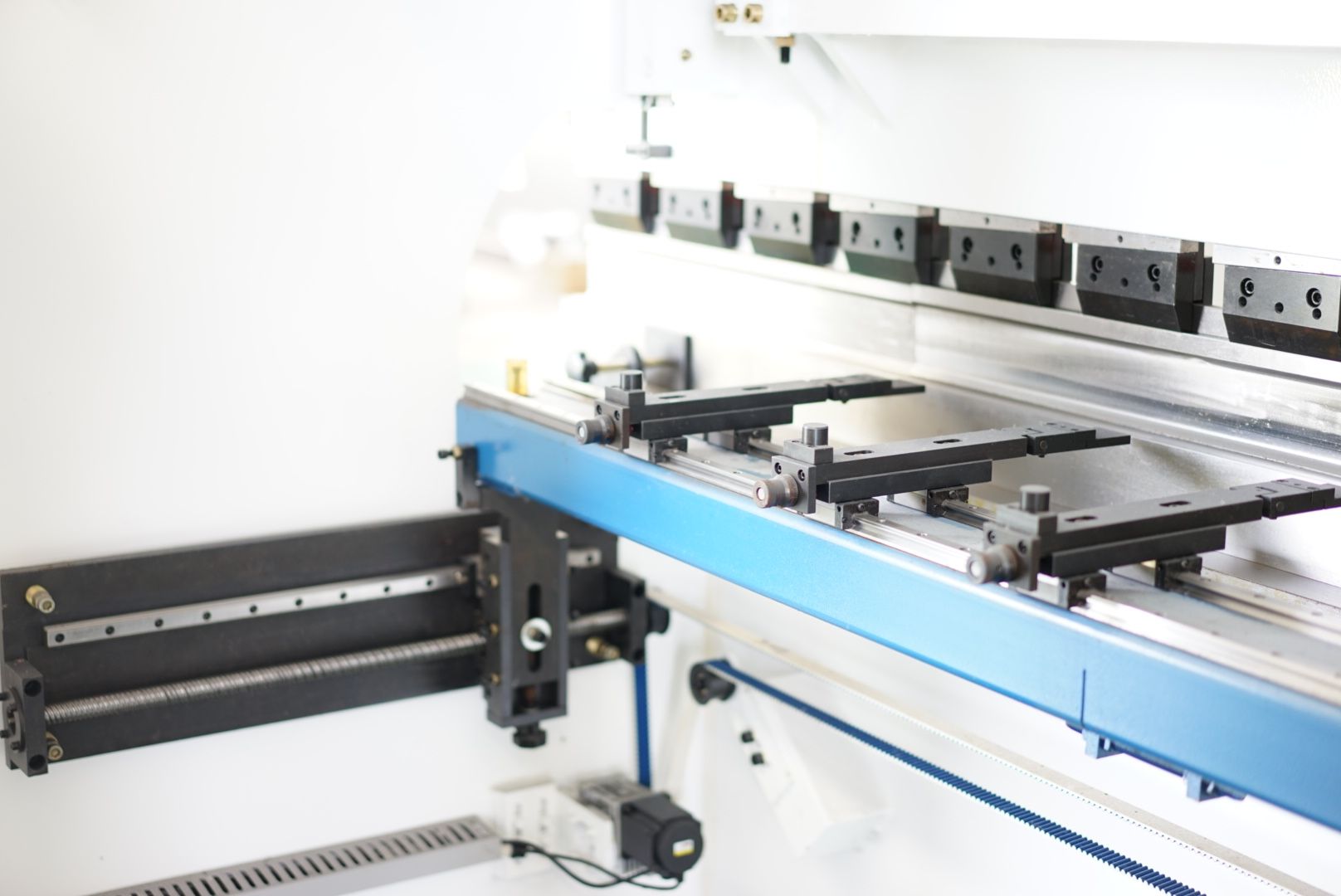

SPS® NC Press Brake Backgauge

PSA Torsion Bar Press Brake Backgauge is assembled by ball screw, linear guide rail, and movable stopper finger.

The X-axis travel is 0-600mm. There are 3 pcs of stoppers on the stopper beam, two of which can be manually moved left and right to stop the material according to different material width, and it has a manual fine-tuning structure. The back stopper beam is annealed and suitable for gantry processing center processing, with good stability and high precision.

Optional Components

l E310P CNC Controller

l Backgauge Servo Motor

l Italy DSP Laser Protection

l Auto Mechnical Crowing Table

l Bending Angle Measurement

l CE Economic Light Curtain

l High Precision Multi-V Die

l WILA Hydraulic Clamping System

l WILA Tooling and Worktable System

l Auto Bending Follower Support

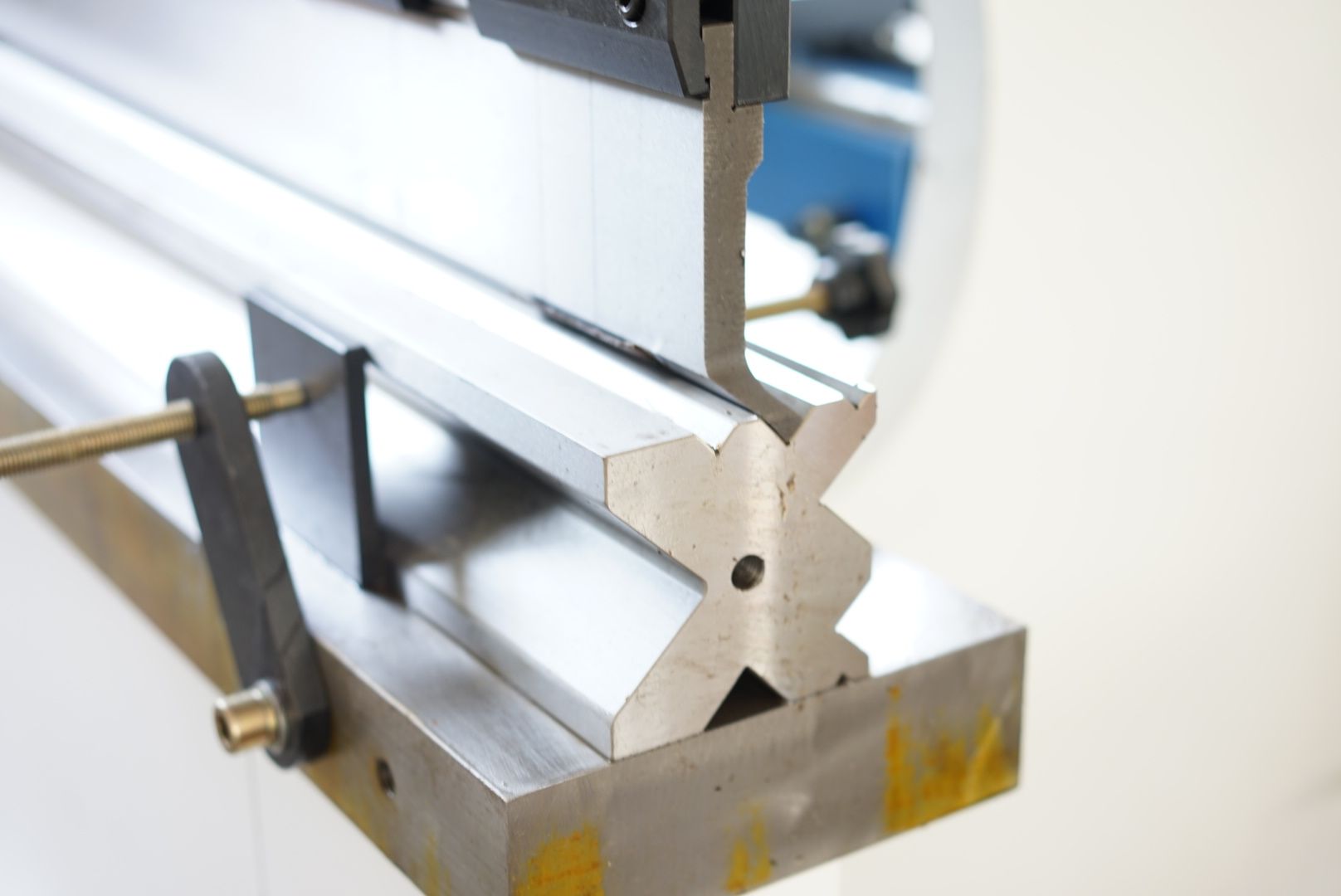

Multi-V Die
You can choose Multi V, Single V or Double V according to your workpiece demand.
DSP Laser Protection
Europe CE Standard, Protection grade IP65, Safety level reaches CAT.4 and SIL3

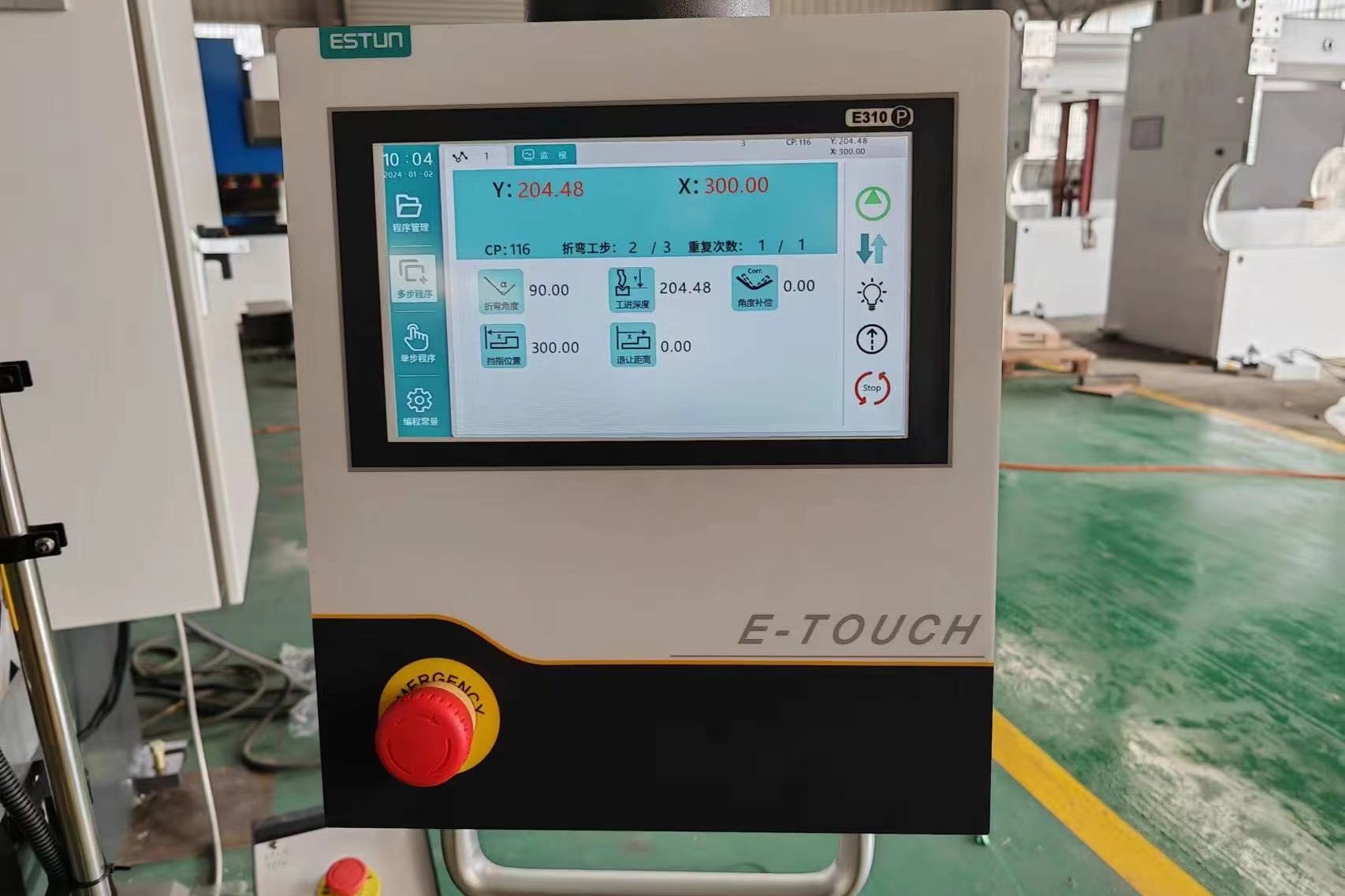

TP10 CNC Controller

SPS offers a full line control system of TP10S, E310P and other controllers according to your preference.
Easy Fast Clamping
We supply Wila, Amada and Double Side Fast Claming System.

Product Video

Technical Parameters

Model	Bending Pressure	Bending Length	Polo Distance	Throat Depth	Slide Strokes	Max Open Height	Backgauge Travel	Main Motor	Dimension
Model	Kn	Mm	Mm	Mm	Mm	Mm	Mm	Kw	Mm
PSN-63T2500	630	2500	2000	350	150	320	600	5.5	270013402000
PSN-80T2500	800	2500	2000	350	150	460	600	5.5	280014502450
PSN-100T3200	1000	3200	2700	400	200	480	600	7.5	380018002650
PSN-100T4000	1000	4000	3500	400	200	480	600	11	460018002650
PSN-125T3200	1250	3200	2700	400	200	480	600	11	380018002700
PSN-125T4000	1250	4000	3500	400	200	480	600	11	460018002700
PSN-160T3200	1600	3200	2700	450	200	480	600	15	380020502800
PSN-160T4000	1600	4000	3500	450	200	480	600	15	460020502800
PSN-200T3200	2000	3200	2700	450	200	480	600	18.5	380021002900
PSN-200T4000	2000	4000	3500	450	200	480	600	18.5	460021002900
PSN-200T5000	2000	5000	3900	450	200	540	600	18.5	560021002900
PSN-250T3200	2000	3200	2700	450	250	540	600	18.5	350022002900
PSN-250T4000	2500	4000	3500	450	250	540	600	22	430022002900
PSN-250T5000	2500	6000	4900	450	250	540	600	22	540022003100
PSN-300T3200	3000	3200	2700	500	250	570	600	22	350022003200
PSN-300T4000	3000	4000	3500	500	250	570	600	22	430025003400
PSN-300T5000	3000	5000	3900	500	250	570	600	22	540025003400
PSN-400T3200	4000	3200	2700	500	300	570	600	30	350027003500
PSN-400T4000	4000	4000	3500	500	300	610	600	30	430027003500
PSN-400T5000	4000	5000	3900	500	300	610	600	30	540027003500
PSN-500T4000	5000	4000	3500	500	320	610	600	37	430027003500
PSN-500T5000	5000	5000	3900	500	320	610	600	37	540027003500
PSN-500T6000	5000	6000	4900	500	320	610	600	37	640027003600
PSN-600T5000	6000	5000	3900	500	320	610	600	45	540033003900
PSN-600T6000	6000	6000	4900	500	320	610	600	45	640033003900
