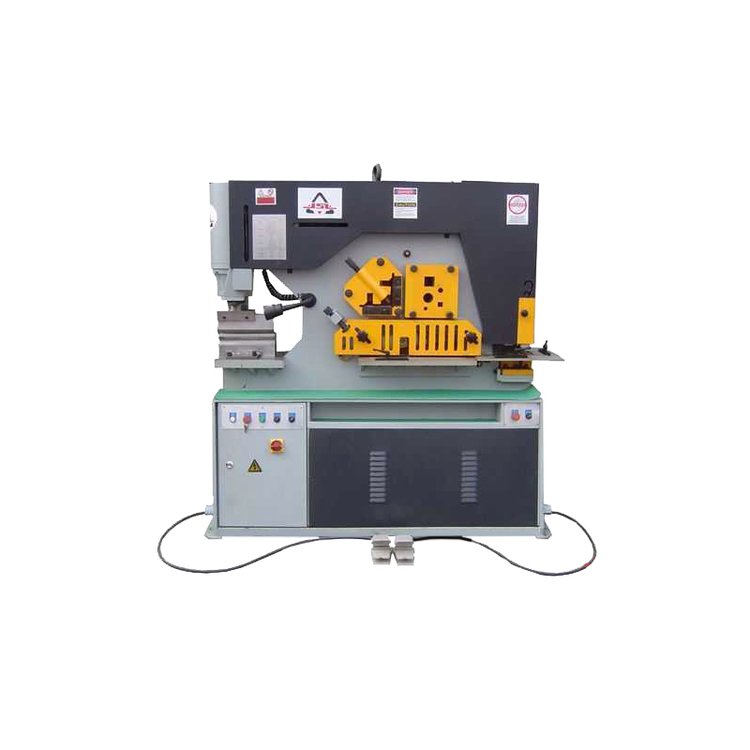

SPS ® Q35Y Hydraulic Ironworker
• Double click linkage work, shear and punching station can be two people can work at the same time.
• Automatic pressing and shearing greatly improves the efficacy and reduces the labor intensity.
• Able to plate, square steel, round steel, channel steel, angle steel, I-beam for plate shear, profile shear and punching die can plate, square steel, round steel, channel steel, angle steel, I-beam for plate shear, profile shear and punching die shear, etc.
-
| Model |
Unit |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-40 |
Q35Y-50 |
| Punch Pressure | Ton | 60 | 90 | 120 | 160 | 200 | 160 |
| Plate Tensile Strength | N/mm² | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Max Cutting Plate Thickness | Mm | 16 | 20 | 25 | 30 | 40 | 50 |
| Shear Angle | ° | 7 | 7 | 8 | 8 | 8 | 8 |
| One Stroke Shear Plate Size | Mm |
16*250 8*400 |
20*330 10*480 |
25*330 16*600 |
30*355 20*600 |
35*400 25*700 |
40*400 30*700 |
| Ram Stroke | 80 | 80 | 80 | 80 | 100 | 100 | |
| Number of Strokes | Time/min | 12 | 16 | 16 | 12 | 10 | 10 |
| Throat Depth | Mm | 300 | 355 | 400 | 600 | 700 | 800 |
| Punching Thickness | Mm | 16 | 20 | 25 | 26 | 35 | 35 |
| Max Punching Diameter | Mm | 25 | 30 | 35 | 38 | 40 | 45 |
| Main Motor Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Dimension | Mm | 1650*760*1780 | 1850*800*1930 | 2350*960*2100 | 2620*980*2380 | 2800*1250*2400 | 3000*1400*2400 |
